250AETOXLX (1998)
Carburant 1

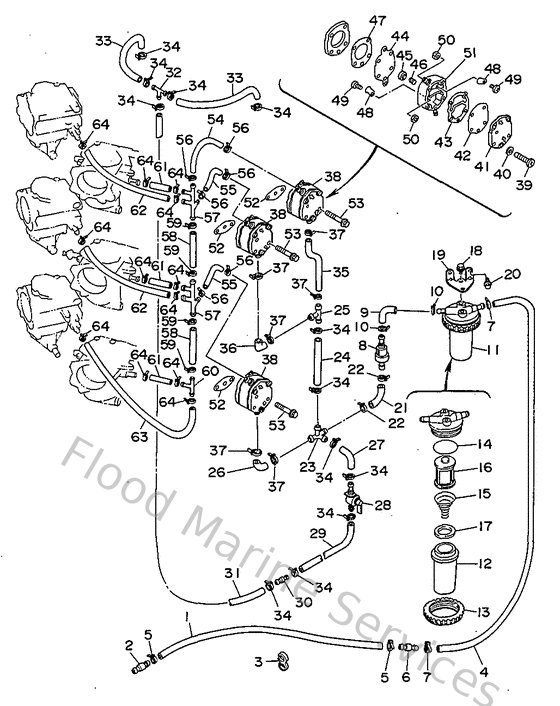

Diagram: Carburant 1
Parts List
Reference
Description
Price
1
9044513M1700
Hose(l2700)
Loading…
↗
2
6R3243770000
Pipe, joint 3
Loading…
↗
3
9046413M3400
Clamp(6r3)
Loading…
↗
4
61A243130000
Pipe 3
Loading…
↗
5
904651009800
Clamp
Loading…
↗
7
9046511M1000
Clamp
Loading…
↗
8
6R5244080000
Fuel feed assembly
Loading…
↗
9
61A243110000
Pipe, fuel 1
Loading…
↗
11
61A245600400
Filter assembly
Loading…
↗
12
61A245210000
Cup, filter
Loading…
↗
13
61A245310000
Nut
Loading…
↗
14
61A245640000
O-ring
Loading…
↗
15
61A245770100
Spring
Loading…
↗
16
61A245630000
Element, filter
Loading…
↗
17
61A244690000
Float, water level
Loading…
↗
18
975950651400
Bolt(gj3)
Loading…
↗
19
61A245660000
Bracket, filter
Loading…
↗
20
9011906M4100
Bolt, with washer(6r6)
Loading…
↗
23
6G5243770000
Pipe, joint 2
Loading…
↗
24
6G5243170100
Pipe 7
Loading…
↗
25
6E5243780000
Pipe, joint 3
Loading…
↗
26
6E5243150000
Pipe 5
Loading…
↗
28
61A245000000
Fuel cock assembly 1
Loading…
↗
29
9044510M4300
Hose (l400)
Loading…
↗
30
6E5217440000
Breezer
Loading…
↗
31
9044510M3400
Hose (L550)
Loading…
↗
32
688243780000
Pipe, joint
Loading…
↗
35
6G5243150000
Pipe 5
Loading…
↗
38
6E5244100300
Fuel pump assembly
Loading…
↗
39
985800503500
Screw, pan head (686)
Loading…
↗
40
929900560000
Washer, plain (646)
Loading…
↗
41
6E5244130000
Body 2
Loading…
↗
42
6E5244710000
Diaphragm
Loading…
↗
43
6E5244350000
Gasket, body 2
Loading…
↗
44
6E5244110000
Diaphragm
Loading…
↗
45
648244240000
Seat,spring
Loading…
↗
46
6E5244230000
Spring, diaphragm
Loading…
↗
47
6E5244340200
Gasket, body
Loading…
↗
48
6A0244210100
Valve, check
Loading…
↗
49
6A0143250000
Screw, pan head
Loading…
↗
50
953800360000
Nut (6g8)
Loading…
↗
51
6E5244120200
Body 1
Loading…
↗
52
65024431A000
Gasket,fuel pump
Loading…
↗
53
975950655000
Bolt, hexagon w/w deep recess
Loading…
↗
55
9044513M3100
Hose (L85)
Loading…
↗
57
61A243770000
Pipe Joint 3
Loading…
↗
58
9044513M1400
Hose (l90)
Loading…
↗
61
9044513M0200
Hose (l90)
Loading…
↗
62
68V243110000
Pipe, fuel 1
Loading…
↗
63
9044513M1100
Pipe, fuel 1
Loading…
↗
