Yamaha Outboard Parts - Carburetor - 100AETO (1997) | Flood Marine
New Search
Parts
New Outboards
Home
100AETO (1997)
Carburetor

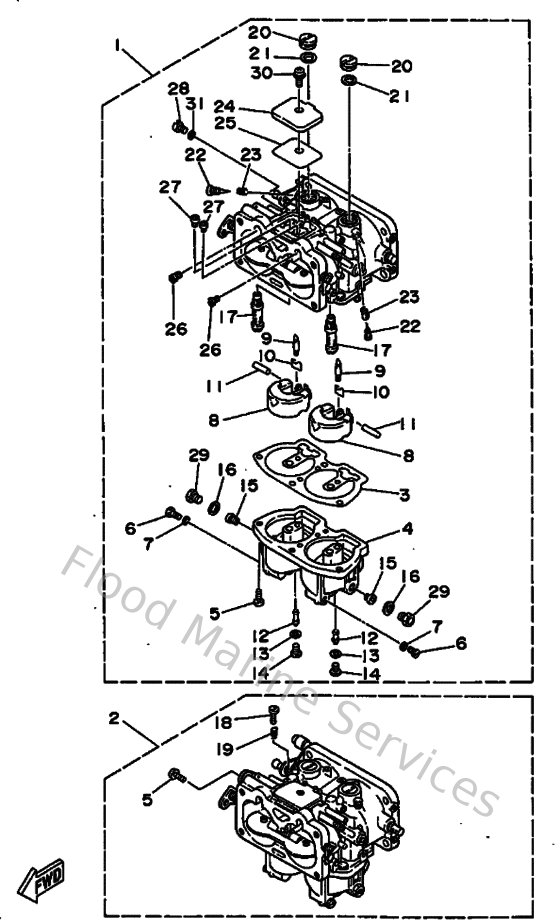

Diagram: Carburetor
Parts List
Reference
Description
Price
1
61U143010100
Carburetor assembly 1 (61u-03)
Loading…
↗
2
61U143020100
Carburetor assembly 2 (61U-03)
Loading…
↗
3
6E5143840300
Gasket, float chamber
Loading…
↗
4
61U143810000
Body, float chamber
Loading…
↗
5
9015705M1900
Screw, pan head
Loading…
↗
6
6E5143830100
Screw, drain
Loading…
↗
7
6J8149950000
Gasket, drin screw
Loading…
↗
8
6E5143850200
Float
Loading…
↗
9
6E5145460000
Valve, needle
Loading…
↗
10
6E5141590000
Clip
Loading…
↗
11
6E5143860200
Pin, float
Loading…
↗
12
61U1492F3900
Jet, air slow
Loading…
↗
13
61U149590000
Gasket
Loading…
↗
14
61U143940000
Valve, drain
Loading…
↗
15
6E51492E8700
Jet, Main (#174)
Loading…
↗
16
6E5143980100
Gasket
Loading…
↗
17
6E51492A0000
Nozzle, main
Loading…
↗
18
6E5143210000
Screw, throttle
Loading…
↗
19
6J8143340000
Spring, throttle
Loading…
↗
20
6E5143280100
Plug
Loading…
↗
21
6E5149790000
Gasket
Loading…
↗
22
6E5143230300
Screw, air adjusting
Loading…
↗
23
6E5142230000
Spring, air adjusting
Loading…
↗
24
6E5145270100
Plate
Loading…
↗
26
61A1492H1200
Jet, slow air (#60)
Loading…
↗
27
61A1492G5400
Jet, main air (#270)
Loading…
↗
29
61A143830100
Screw, drain
Loading…
↗
30
979800510800
Screw, with washer
Loading…
↗
31
6J8149590000
Gasket, drin screw
Loading…
↗
