175AETOL (1996)
Carburetor

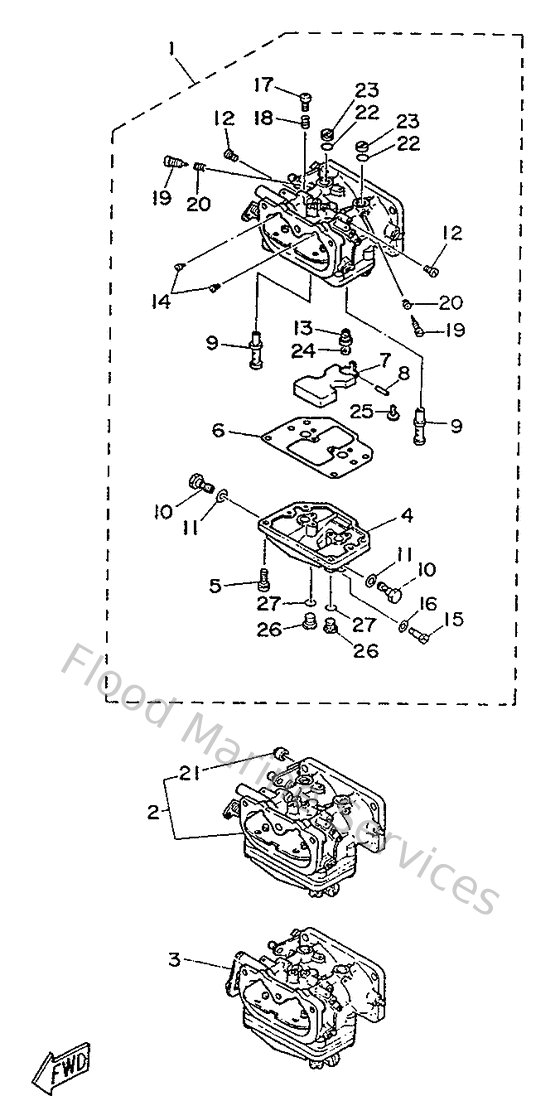

Diagram: Carburetor
Parts List
Reference
Description
Price
5
978030501700
Screw panhead (669)
Loading…
↗
6
6E5143840200
Gasket, float chamber
Loading…
↗
8
6E5143860100
Pin, float
Loading…
↗
10
6E5143436500
Jet, Main (#130) (#130)
Loading…
↗
11
1J2143980000
Packing
Loading…
↗
13
6G4143901700
Valve Seat Assembly
Loading…
↗
15
6E5143830000
Screw, Drain
Loading…
↗
16
6E5143980000
Gasket
Loading…
↗
17
985800402000
Screw, pan head (7h3)
Loading…
↗
18
647143340000
Spring, air adjusting.
Loading…
↗
19
6G5143230000
Screw Air Adjusting
Loading…
↗
20
650142230000
Spring, Drain Valve
Loading…
↗
23
6G5143280000
Screw, Pilot Stop
Loading…
↗
24
367141950000
Washer, valve seat
Loading…
↗
25
989020401000
Screw, binding (m01)
Loading…
↗
26
6A4143940000
Valve, drain
Loading…
↗
27
652143970000
Ring, o
Loading…
↗
