200AETOL (1988)
Carburetor

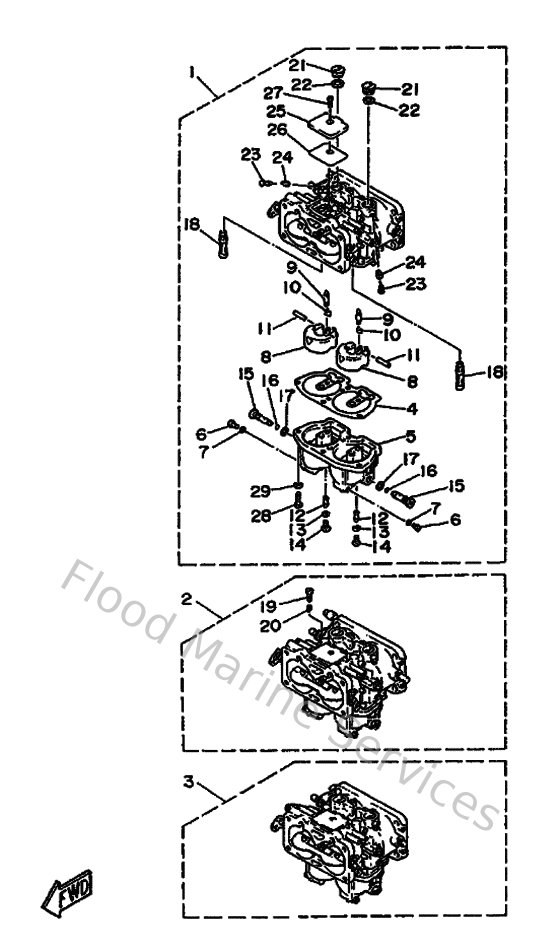

Diagram: Carburetor
Parts List
Reference
Description
Price
1
6G4143010500
Carburetor assembly 1
Loading…
↗
2
6G4143020500
Carburetor assembly 2
Loading…
↗
3
6G4143030500
Carburetor assembly 3
Loading…
↗
4
6E5143840300
Gasket, float chamber
Loading…
↗
5
6E5143810300
Body, Float Chamber
Loading…
↗
6
6E5143830100
Screw, drain
Loading…
↗
7
6J8149950000
Gasket, drin screw
Loading…
↗
8
6E5143850200
Float
Loading…
↗
9
6E5145460000
Valve, needle
Loading…
↗
10
6E5141590000
Clip
Loading…
↗
11
6E5143860200
Pin, float
Loading…
↗
12
6E51492F4000
Jet, Air Slow
Loading…
↗
13
6E5143970000
Gasket
Loading…
↗
14
6E5143940000
Valve, Drain
Loading…
↗
15
6E51492E6200
Jet, Main
Loading…
↗
16
6E5149970000
O-ring
Loading…
↗
17
6E5143980100
Gasket
Loading…
↗
18
6G51492A0000
Nozzle, Main
Loading…
↗
19
6E5143210000
Screw, throttle
Loading…
↗
20
6J8143340000
Spring, throttle
Loading…
↗
21
6E5143280100
Plug
Loading…
↗
23
6E5143230300
Screw, air adjusting
Loading…
↗
24
6E5142230000
Spring, air adjusting
Loading…
↗
25
6E5145270000
Plate
Loading…
↗
26
6E5149590000
Gasket
Loading…
↗
27
987010500800
Screw Flat
Loading…
↗
28
985800501600
Screw, pan head(6b0)
Loading…
↗
29
929900510000
Ybs67-5 washer, spring
Loading…
↗
