20DMHO (1996)
Carburetor

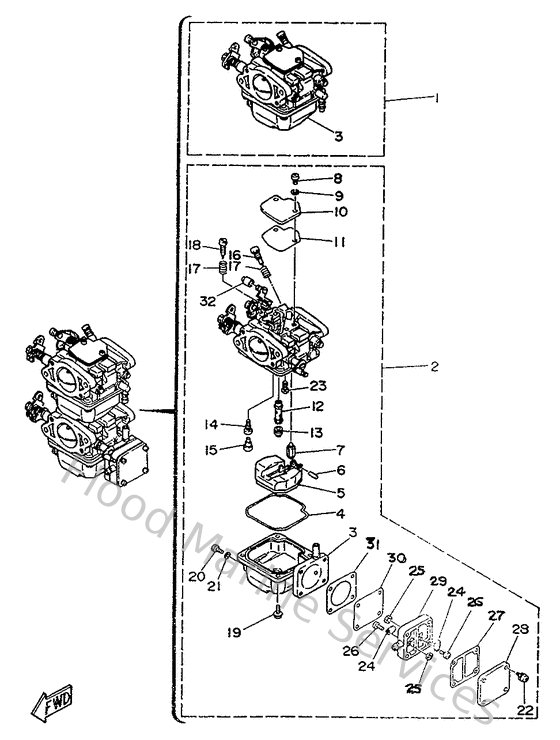

Diagram: Carburetor
Parts List
Reference
Description
Price
1
6L2143010000
Carburetor assembly 1
Loading…
↗
2
6L2143020100
Carburetor assembly 2
Loading…
↗
3
6L2143810000
Body, float chamber
Loading…
↗
4
6L2143840000
Gasket, float chamber
Loading…
↗
5
6L2143850000
Float
Loading…
↗
6
6E5143860100
Pin, float
Loading…
↗
7
6L2143920000
Valve, needle
Loading…
↗
10
6L2141570000
Cover, mixing
Loading…
↗
11
6L2143990000
Gasket
Loading…
↗
12
6L2143410000
Nozzle, main
Loading…
↗
13
30X143436300
Jet, main
Loading…
↗
14
6L2143423000
Jet, pilot (#60)
Loading…
↗
15
50M143550000
Plug
Loading…
↗
16
6L2143230000
Screw, air adjusting
Loading…
↗
17
646142120100
Spring, pilot adjusting
Loading…
↗
18
664143210100
Screw, throttle
Loading…
↗
20
677143830100
Screw, drain
Loading…
↗
21
6L2143980000
Gasket
Loading…
↗
22
677244440100
Screw
Loading…
↗
24
6A0244210100
Valve, check
Loading…
↗
26
6E7143250000
Screw, pan head
Loading…
↗
27
6L2244350000
Gasket, body 2
Loading…
↗
28
6L2244130000
Body 2
Loading…
↗
29
682244120000
Body, pump
Loading…
↗
30
677244110200
Diaphragm
Loading…
↗
31
677244340200
Gasket, pump 1
Loading…
↗
32
6L2145780000
Collar & stopper set
Loading…
↗
