25JETO (1999)
Carburetor

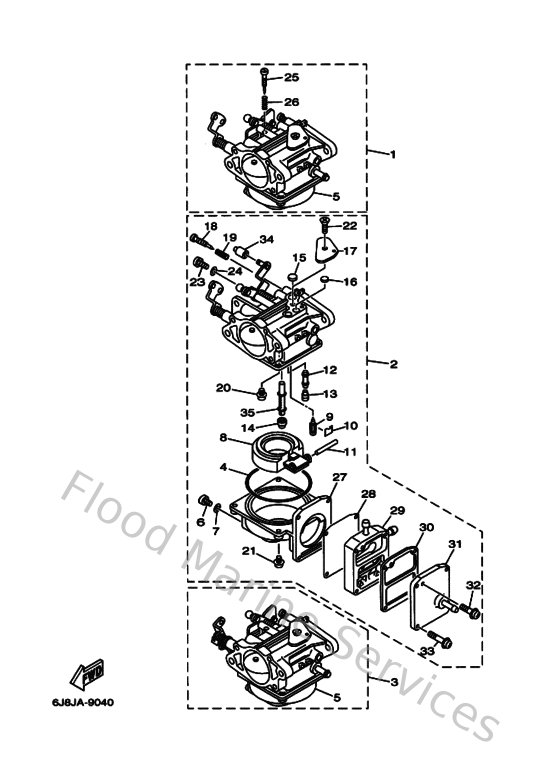

Diagram: Carburetor
Parts List
Reference
Description
Price
1
6J8143011100
Carburetor assembly 1
Loading…
↗
2
6J8143020100
Carburetor assembly 2
Loading…
↗
3
6K9143030100
Carburetor assembly 3
Loading…
↗
4
6J8149840000
Gasket, float chamber
Loading…
↗
5
6J8149800000
Body Float Chamber
Loading…
↗
6
6E5143830100
Screw, drain
Loading…
↗
7
6J8149950000
Gasket, drin screw
Loading…
↗
8
6J8149850000
Float
Loading…
↗
9
6J8145460000
Valve, needle
Loading…
↗
10
6J8141590000
Clip
Loading…
↗
11
6J8145480000
Pin, float arm
Loading…
↗
12
6J81492F2500
Jet, air slow (#50)
Loading…
↗
13
6J8149660000
Plug
Loading…
↗
14
6J81492E5100
Jet, main (#102)
Loading…
↗
15
6J8141260000
Plug
Loading…
↗
16
6J8141180000
Plug
Loading…
↗
17
6J8145270100
Plate
Loading…
↗
18
6J8149230000
Screw, pilot
Loading…
↗
19
6J8145550000
Spring
Loading…
↗
20
985800401000
Screw, pan head (e56)
Loading…
↗
21
979800411200
Screw, pan head (686)
Loading…
↗
22
987800500800
Screw Flat Head(6J8)
Loading…
↗
23
6J8145920100
Screw
Loading…
↗
24
929900560000
Washer, plain (646)
Loading…
↗
25
6J8145230000
Screw, stop
Loading…
↗
26
6J8143340000
Spring, throttle
Loading…
↗
27
6J8149810000
Body, Float Chamber
Loading…
↗
28
6J8244710000
Diaphragm
Loading…
↗
29
6J8244150000
Body comp (with valve)
Loading…
↗
30
6J8244320000
Gasket, fuel pump 2
Loading…
↗
31
6J8244520000
Cover
Loading…
↗
32
979800312200
Screw, with washer(6j8)
Loading…
↗
33
979800412400
Screw, with washer(6j8)
Loading…
↗
34
6J8145780000
Collar
Loading…
↗
35
6J81492A0000
Nozzle, main
Loading…
↗
