Yamaha Outboard Parts - Carburetor - 25NEMO (1990) | Flood Marine

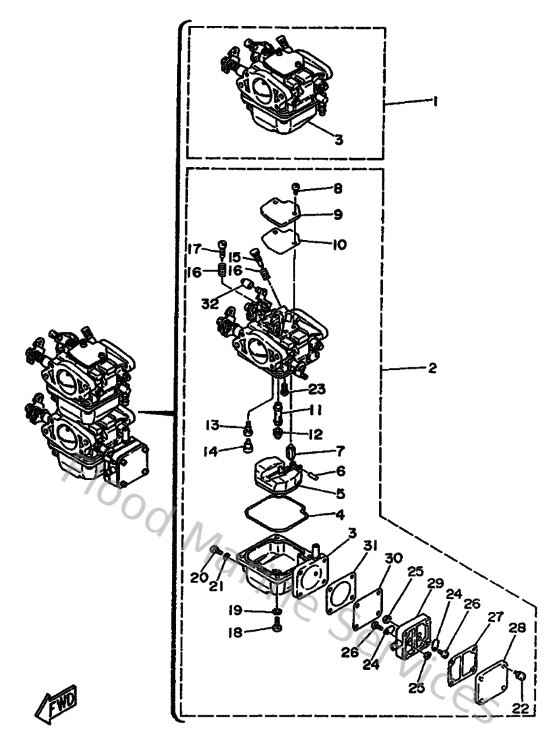

Diagram: Carburetor

Diagram

Parts List

Reference
Description
Price


1
6L2143010100
Carburetor assembly 1
Loading…

↗
2
6L2143020100
Carburetor assembly 2
Loading…

↗
3
6L2143830000
Body, float chamber
Loading…

↗
4
6L2143840000
Gasket, float chamber
Loading…

↗
5
6L2143850000
Float
Loading…

↗
6
6E5143860100
Pin, float
Loading…

↗
7
6L2143920000
Valve, needle
Loading…

↗
8
985800401000
Screw, pan head (e56)
Loading…

↗
9
6L2141570000
Cover, mixing
Loading…

↗
10
6L2143990000
Gasket
Loading…

↗
11
6L2143410000
Nozzle, main
Loading…

↗
12
30X143436300
Jet, main
Loading…

↗
13
6L2143423000
Jet, pilot (#60)
Loading…

↗
14
50M143550000
Plug
Loading…

↗
15
6L2143230000
Screw, air adjusting
Loading…

↗
16
646142120100
Spring, pilot adjusting
Loading…

↗
17
985800401400
Screw, pan head(ga5)
Loading…

↗
20
677143830100
Screw, drain
Loading…

↗
21
6L2143980000
Gasket
Loading…

↗
22
677244440000
Screw
Loading…

↗
23
989800400600
Screw, bind(6l2)
Loading…

↗
24
6A0244210100
Valve, check
Loading…

↗
25
953800360000
Nut (6g8)
Loading…

↗
26
6E7143250000
Screw, pan head
Loading…

↗
27
6L2244350000
Gasket, body 2
Loading…

↗
28
6L2244130000
Body 2
Loading…

↗
29
682244120100
Body, pump
Loading…

↗
30
677244110200
Diaphragm
Loading…

↗
31
677244340200
Gasket, pump 1
Loading…

↗
32
6L2145780000
Collar & stopper set
Loading…

↗
