Yamaha Outboard Parts - Carburetor - 2BMH (1986) | Flood Marine

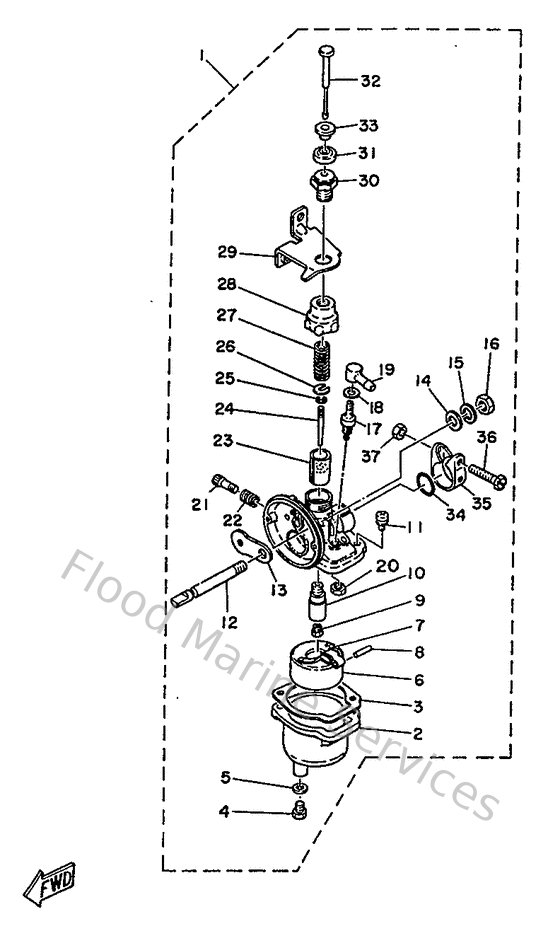

Diagram: Carburetor

Diagram

Parts List

Reference
Description
Price


1
6A1143010000
Carburetor assembly 1
Loading…

↗
2
6A1143810000
Body, Float Chamber
Loading…

↗
3
6A1143840000
Gasket, float chamber
Loading…

↗
4
6A1143940000
Screw, drain
Loading…

↗
5
6A1143980000
Gasket
Loading…

↗
7
646143870000
Arm, Diaphragm
Loading…

↗
8
6M7143860000
Pin, float
Loading…

↗
9
646143434800
Jet Main (# 96)
Loading…

↗
11
985030401000
Screw, pan head (e56)
Loading…

↗
12
6A1144480000
Lever, choke valve
Loading…

↗
13
6A1142170000
Valve, Choke
Loading…

↗
14
646143570000
Washer
Loading…

↗
15
6A1143560000
Washer
Loading…

↗
16
646143580000
Nut
Loading…

↗
17
6A1143900000
Needle Valve Assembly
Loading…

↗
21
646142110200
Screw, pilot adjusting
Loading…

↗
22
646142120100
Spring, pilot adjusting
Loading…

↗
23
646143120800
Valve, throttle
Loading…

↗
24
6A1141160000
Needle
Loading…

↗
25
646141370000
Clip
Loading…

↗
26
646141360000
Seat, spring
Loading…

↗
27
646143310100
Spring,throttle valve
Loading…

↗
28
646141580000
Top, mixing chamber
Loading…

↗
29
6A1144970000
Stay, throttle wire
Loading…

↗
30
646143210000
Screw, throttle
Loading…

↗
32
6A1143140000
Bar, throttle
Loading…

↗
33
6A1141630000
Spacer
Loading…

↗
34
646142290100
O-ring
Loading…

↗
35
6A1141270000
Clip
Loading…

↗
36
646141250100
Screw
Loading…

↗
