Yamaha Outboard Parts - Carburetor - 2BMH (1997) | Flood Marine

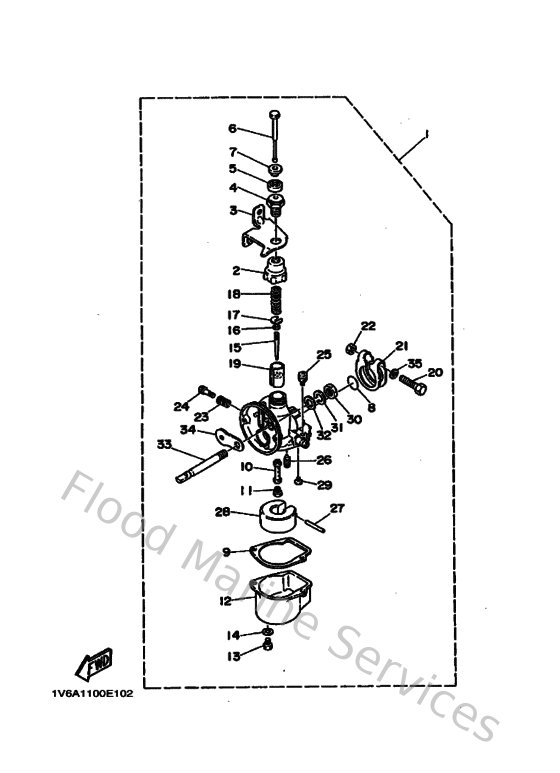

Diagram: Carburetor

Diagram

Parts List

Reference
Description
Price


1
6A1143010300
Carburetor assembly 1
Loading…

↗
2
646141580000
Top, mixing chamber
Loading…

↗
3
6A1144970000
Stay, throttle wire
Loading…

↗
4
646143210000
Screw, throttle
Loading…

↗
6
6A1143140000
Bar, throttle
Loading…

↗
7
6A1141630000
Spacer
Loading…

↗
8
646142290100
O-ring
Loading…

↗
9
6A1143840000
Gasket, float chamber
Loading…

↗
10
6A1143410100
Nozzle, main
Loading…

↗
11
6A1143434800
Jet Main (#96)
Loading…

↗
12
6A1143810200
Body, float chamber
Loading…

↗
13
978900500600
Screw,panhead (eg9)
Loading…

↗
14
646141980100
Gasket
Loading…

↗
15
6A1141161000
Needle
Loading…

↗
16
646141370000
Clip
Loading…

↗
17
646141360000
Seat, spring
Loading…

↗
18
646143310100
Spring,throttle valve
Loading…

↗
19
646143120800
Valve, throttle
Loading…

↗
20
646141250100
Screw
Loading…

↗
21
6A1141270100
Clip
Loading…

↗
22
6A1143580100
Nut
Loading…

↗
23
6A1142120000
Spring, Pilot Adjusting
Loading…

↗
24
646142110200
Screw, pilot adjusting
Loading…

↗
25
979800411000
Screw, pan head (e56)
Loading…

↗
26
6A1143920000
Valve, needle
Loading…

↗
27
6A1143860000
Pin, float
Loading…

↗
28
6A1143850000
Float
Loading…

↗
29
985800300600
Screw, pan head(78g)
Loading…

↗
30
646143580000
Nut
Loading…

↗
31
6A1143560000
Washer
Loading…

↗
32
646143570000
Washer
Loading…

↗
33
6A1144480000
Lever, choke valve
Loading…

↗
34
6A1142170100
Valve Choke
Loading…

↗
35
929900560000
Washer, plain (646)
Loading…

↗
