Yamaha Outboard Parts - Carburetor - 30GMH (1997) | Flood Marine

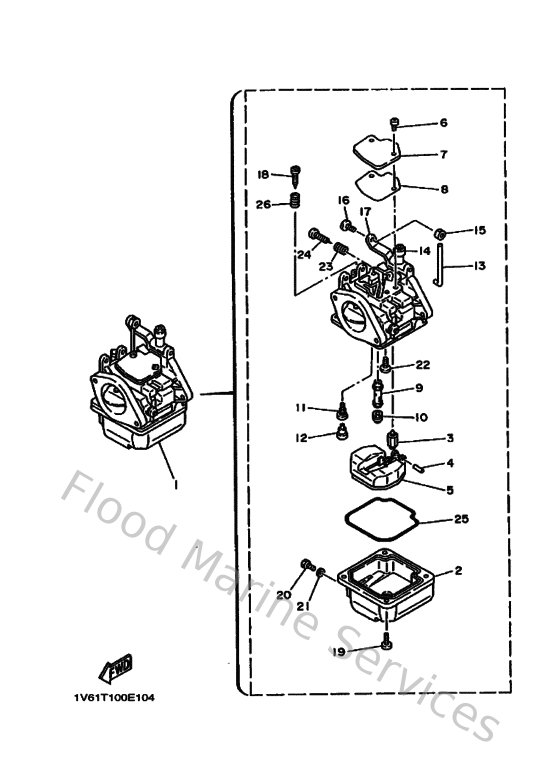

Diagram: Carburetor

Diagram

Parts List

Reference
Description
Price


1
61N143010200
Carburetor assembly 1
Loading…

↗
2
61N143810000
Body, float chamber
Loading…

↗
3
61N143920000
Valve, needle
Loading…

↗
4
6E5143860100
Pin, float
Loading…

↗
5
6L2143850000
Float
Loading…

↗
6
979800411000
Screw, pan head (e56)
Loading…

↗
7
6L2141570000
Cover, mixing
Loading…

↗
8
6L2143990000
Gasket
Loading…

↗
9
61N143410000
Nozzle, main
Loading…

↗
10
61N143436500
Jet, main (#130)
Loading…

↗
11
6L2143423200
Jet, Pilot (#64)
Loading…

↗
12
50M143550000
Plug
Loading…

↗
13
6J0143791000
Rod2
Loading…

↗
14
626426580000
Bushing
Loading…

↗
15
677412260000
End, throttle lever (carb)
Loading…

↗
16
677143270100
Screw
Loading…

↗
17
61N412160000
Sheave Shaft Accel. Link
Loading…

↗
18
664143210100
Screw, throttle
Loading…

↗
19
985800401200
Screw, pan head (686)
Loading…

↗
20
677143830100
Screw, drain
Loading…

↗
21
6L2143980000
Gasket
Loading…

↗
22
989800400600
Screw, bind(6l2)
Loading…

↗
23
646142120100
Spring, pilot adjusting
Loading…

↗
24
61N143230000
Screw, air adjusting
Loading…

↗
25
6L2143840000
Gasket, float chamber
Loading…

↗
26
61N142120000
Spring, pilot adjusting
Loading…

↗
