Yamaha Outboard Parts - Carburetor - 40HM (1987) | Flood Marine

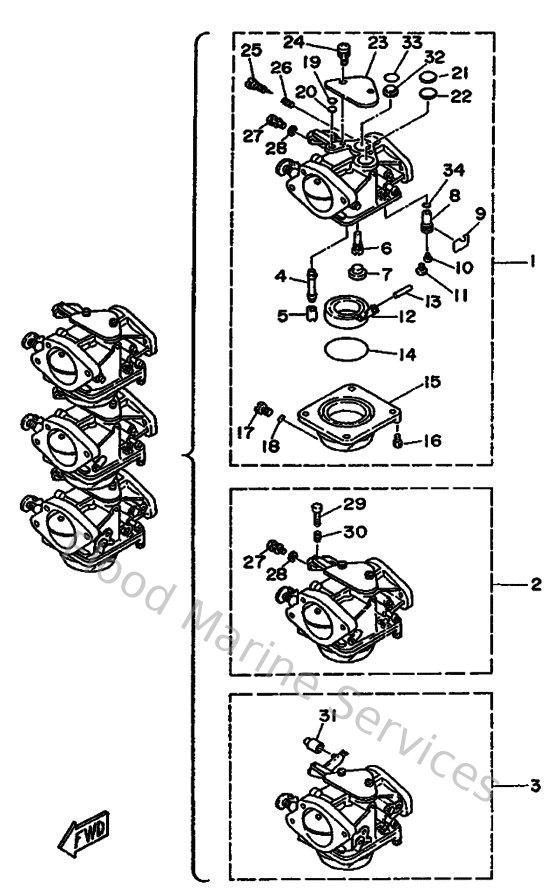

Diagram: Carburetor

Diagram

Parts List

Reference
Description
Price


1
6H4143010500
Carburetor assembly 1
Loading…

↗
2
6H4143020500
Carburetor assembly 2
Loading…

↗
3
6H4143030600
Carburetor (Lower) (Lower)
Loading…

↗
5
676149433000
Jet, main (#115)
Loading…

↗
6
6H4149481400
Jet (#68)
Loading…

↗
7
676149660000
Rubber cap
Loading…

↗
8
6H3145900100
Needle valve assembly
Loading…

↗
9
663141590000
Clip
Loading…

↗
10
676141860000
Pin, valve
Loading…

↗
11
985800400800
Screw, pan head (713)
Loading…

↗
12
6G1149850000
Float comp.
Loading…

↗
13
688145480000
Pin, arm
Loading…

↗
14
6G1149840000
Gasket, float chamber
Loading…

↗
15
6H2149800000
Body, float chamber
Loading…

↗
16
979800411400
Screw, pan head(ga5)
Loading…

↗
17
663149920000
Screw, drain
Loading…

↗
19
663141260000
Packing
Loading…

↗
20
663145270000
Plate
Loading…

↗
21
688141260000
Packing
Loading…

↗
22
688145270000
Plate
Loading…

↗
25
692149230000
Screw, adjusting
Loading…

↗
26
679145550000
Spring
Loading…

↗
27
663145920000
Screw
Loading…

↗
28
902010565200
Washer, plate(65j)
Loading…

↗
29
663145230000
Screw, stop
Loading…

↗
30
905011032600
Spring coil(663)(carb)
Loading…

↗
31
676145780000
Collar (Lower)
Loading…

↗
32
6H3145780000
Collar
Loading…

↗
33
9321015M5200
O-ring (6e9)
Loading…

↗
34
932100422800
O-ring (371)
Loading…

↗
