40HM (1993)
Carburetor

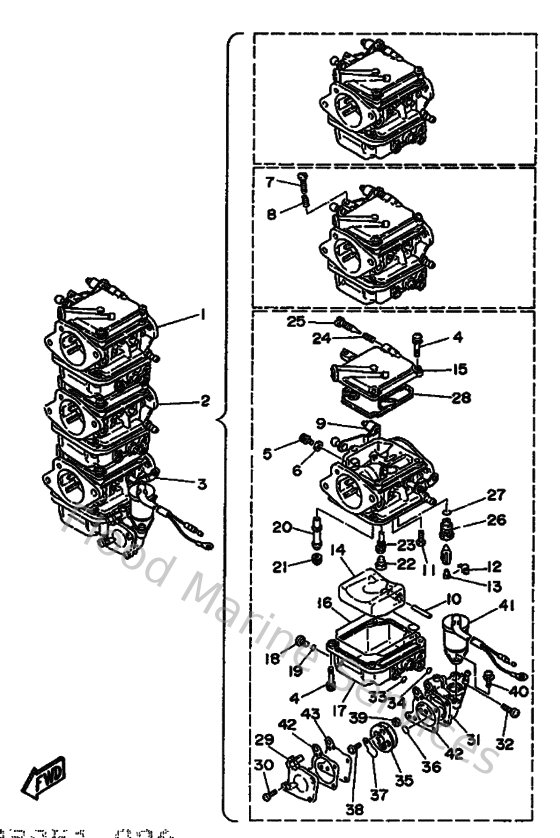

Diagram: Carburetor
Parts List
Reference
Description
Price
1
6H4143010800
Carburetor assembly 1
Loading…
↗
2
6H4143020800
Carburetor Assembly 2
Loading…
↗
3
6H4143030800
Carburetor (Lower)
Loading…
↗
4
985800401400
Screw, pan head(ga5)
Loading…
↗
5
6K5145920000
Screw
Loading…
↗
6
902010565200
Washer, plate(65j)
Loading…
↗
7
6H1145230000
Screw, stop
Loading…
↗
8
905011032600
Spring coil(663)(carb)
Loading…
↗
9
6H2145780000
Collar
Loading…
↗
10
6H4145480000
Pin, float arm
Loading…
↗
11
985800400800
Screw, pan head (713)
Loading…
↗
12
663141590000
Clip
Loading…
↗
13
676141860000
Pin, valve
Loading…
↗
14
6H4149850100
Float
Loading…
↗
15
6H4141460000
Plate
Loading…
↗
16
6H4149840000
Gasket, float chamber
Loading…
↗
17
6H4149800000
Body, float chamber
Loading…
↗
18
6H3149920000
Screw, drain
Loading…
↗
19
932100423000
O-ring (371)
Loading…
↗
20
6H4149470700
Jet, Needle
Loading…
↗
21
676149433000
Jet, main (#115)
Loading…
↗
22
676149660000
Rubber cap
Loading…
↗
23
6H4149481100
Jet (#60)
Loading…
↗
24
679145550000
Spring
Loading…
↗
25
692149230000
Screw, adjusting
Loading…
↗
26
6H4145900000
Needle valve assembly
Loading…
↗
27
932100422800
O-ring (371)
Loading…
↗
28
6H4141470000
O-ring
Loading…
↗
29
6H4244520100
Cover
Loading…
↗
30
6H4145670000
Screw
Loading…
↗
32
6H4145921000
Screw
Loading…
↗
33
6H4145610000
O-ring
Loading…
↗
34
6H4145620000
O-ring
Loading…
↗
35
6H4244130000
Body 2
Loading…
↗
36
6H4244860000
O-ring
Loading…
↗
37
6L5244210000
Valve, check
Loading…
↗
38
989800300600
Screw, bind(6g1)
Loading…
↗
39
953800360000
Nut (6g8)
Loading…
↗
40
979800531000
Screw, with washer(6k5)
Loading…
↗
41
6H4861200000
Solenoid Valve Assembly
Loading…
↗
42
6H5244340000
Gasket, body
Loading…
↗
43
6H4244110000
Diaphragm
Loading…
↗
