40QMH (1992)
Carburetor

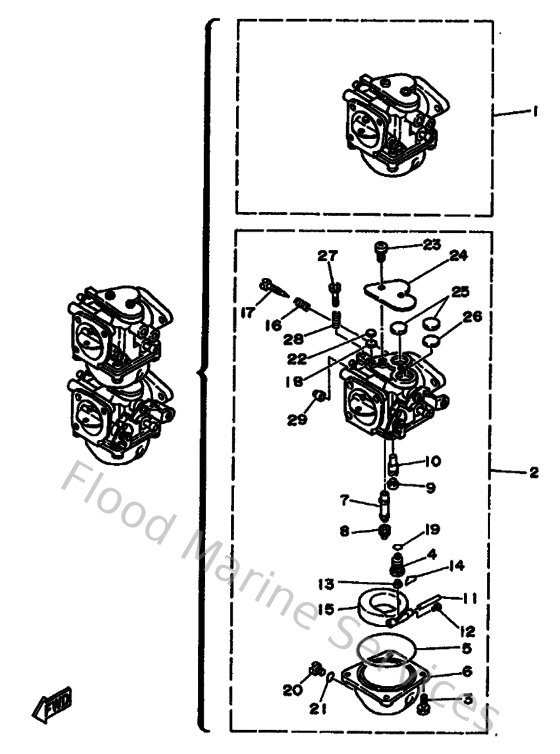

Diagram: Carburetor
Parts List
Reference
Description
Price
1
6E9143010200
Carburetor Assembly 1
Loading…
↗
2
6E9143020200
Carburetor Assembly 2
Loading…
↗
3
979800411400
Screw, pan head(ga5)
Loading…
↗
4
6H3145900000
Needle valve assembly
Loading…
↗
5
676149840000
Gasket, float chamber
Loading…
↗
6
688149800000
Body, float chamber
Loading…
↗
7
6E9149470000
Jet, Needle
Loading…
↗
8
676149434100
Jet, main (#170)
Loading…
↗
9
676149660000
Rubber cap
Loading…
↗
10
6E9149481700
Jet (#75)
Loading…
↗
11
688145480000
Pin, arm
Loading…
↗
12
985800400800
Screw, pan head (713)
Loading…
↗
16
679145550000
Spring
Loading…
↗
17
692149230000
Screw, adjusting
Loading…
↗
18
663145270000
Plate
Loading…
↗
19
932100422800
O-ring (371)
Loading…
↗
20
6H3149920000
Screw, drain
Loading…
↗
21
932100423000
O-ring (371)
Loading…
↗
22
663141260000
Packing
Loading…
↗
23
979800531000
Screw, with washer(6k5)
Loading…
↗
24
688145720100
Seal
Loading…
↗
25
688141260000
Packing
Loading…
↗
26
688145270000
Plate
Loading…
↗
