Yamaha Outboard Parts - Carburetor - 40QMH (1997) | Flood Marine

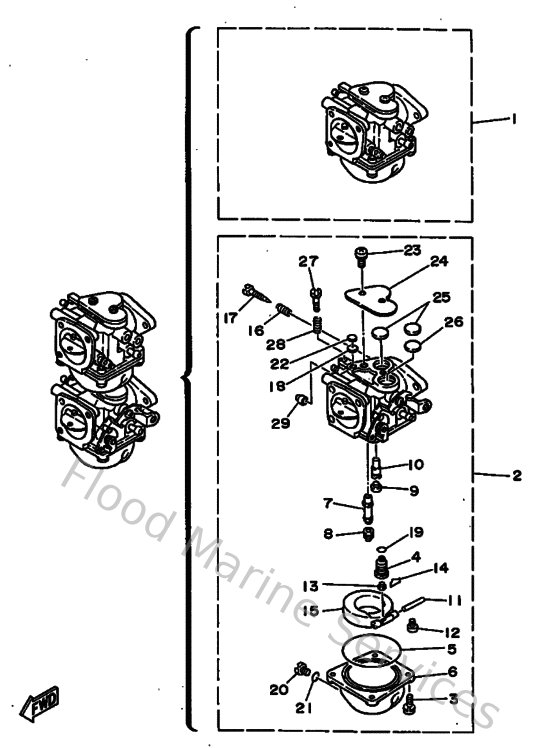

Diagram: Carburetor

Diagram

Parts List

Reference
Description
Price


1
6E9143010200
Carburetor Assembly 1
Loading…

↗
2
6E9143020200
Carburetor Assembly 2
Loading…

↗
3
979800411400
Screw, pan head(ga5)
Loading…

↗
4
6E9145900000
Needle Valve Assembly
Loading…

↗
5
676149840000
Gasket, float chamber
Loading…

↗
6
688149800000
Body, float chamber
Loading…

↗
7
6E9149470000
Jet, Needle
Loading…

↗
8
676149434100
Jet, main (#170)
Loading…

↗
9
676149660000
Rubber cap
Loading…

↗
10
6E9149481700
Jet (#75)
Loading…

↗
11
688145480000
Pin, arm
Loading…

↗
12
985800400800
Screw, pan head (713)
Loading…

↗
13
676141860000
Pin, valve
Loading…

↗
14
633141590000
Clip
Loading…

↗
15
676149850100
Float comp
Loading…

↗
16
679145550000
Spring
Loading…

↗
17
692149230000
Screw, adjusting
Loading…

↗
18
663145270000
Plate
Loading…

↗
19
932100422800
O-ring (371)
Loading…

↗
20
6H3149920000
Screw, drain
Loading…

↗
21
932100423000
O-ring (371)
Loading…

↗
22
663141260000
Packing
Loading…

↗
23
979800531000
Screw, with washer(6k5)
Loading…

↗
24
688145720100
Seal
Loading…

↗
25
688141260000
Packing
Loading…

↗
26
688145270000
Plate
Loading…

↗
27
63V145230000
Screw, stop
Loading…

↗
28
905011032600
Spring coil(663)(carb)
Loading…

↗
29
6H2145780000
Collar
Loading…

↗
