Yamaha Outboard Parts - Carburetor - 8CEM (1988) | Flood Marine

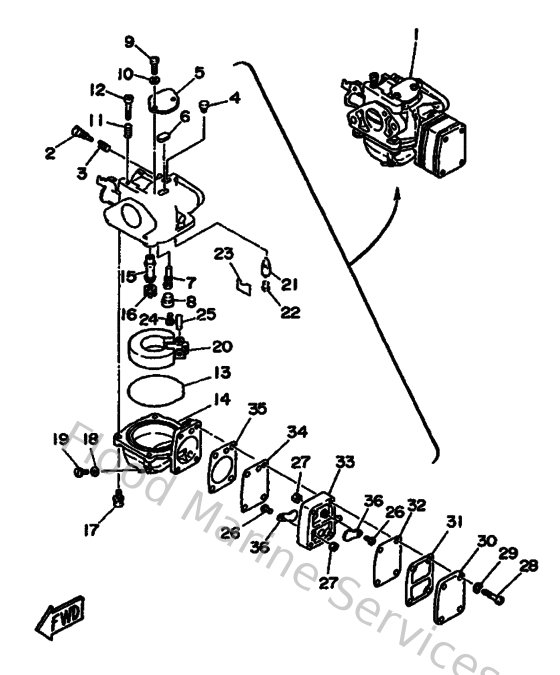

Diagram: Carburetor

Diagram

Parts List

Reference
Description
Price


1
6G1143010000
Carburetor assembly 1
Loading…

↗
2
679149230000
Screw, pilot
Loading…

↗
3
679145550000
Spring
Loading…

↗
4
6G1149660000
Cap
Loading…

↗
5
6G1145270000
Plate
Loading…

↗
6
6G1141260000
Packing
Loading…

↗
7
6G1149480500
Jet (#45)
Loading…

↗
8
676149660000
Rubber cap
Loading…

↗
9
985800401000
Screw, pan head (e56)
Loading…

↗
10
929030410000
Ybs67-4 washer, spring
Loading…

↗
11
905011032600
Spring coil(663)(carb)
Loading…

↗
12
663145230000
Screw, stop
Loading…

↗
13
6G1149840000
Gasket, float chamber
Loading…

↗
14
6G1149800100
Body, float chamber
Loading…

↗
15
6G1149470000
Nozzle, main
Loading…

↗
16
676149432600
Jet, main (#98)
Loading…

↗
17
979800411400
Screw, pan head(ga5)
Loading…

↗
18
6G1143980000
Washer
Loading…

↗
19
6G1149920000
Screw, drain
Loading…

↗
20
6G1149850000
Float comp.
Loading…

↗
21
6G1145460100
Valve, needle
Loading…

↗
22
676141860000
Pin, valve
Loading…

↗
23
663141590000
Clip
Loading…

↗
24
985010400800
Screw, pan head (713)
Loading…

↗
25
688145480000
Pin, arm
Loading…

↗
27
901790347800
Nut(7h6)
Loading…

↗
28
985800402500
Screw, pan head
Loading…

↗
30
6G1244520000
Cover, pump
Loading…

↗
31
6G1244320000
Packing
Loading…

↗
32
6G1244710000
Diaphragm
Loading…

↗
33
6G1244120100
Body 1
Loading…

↗
34
6G1244110000
Diaphragm
Loading…

↗
35
6G1244310000
Gasket, fuel pump 1
Loading…

↗
36
6G1244210000
Valve, check
Loading…

↗
