Yamaha Outboard Parts - Carburetor - F15AMH (1998) | Flood Marine

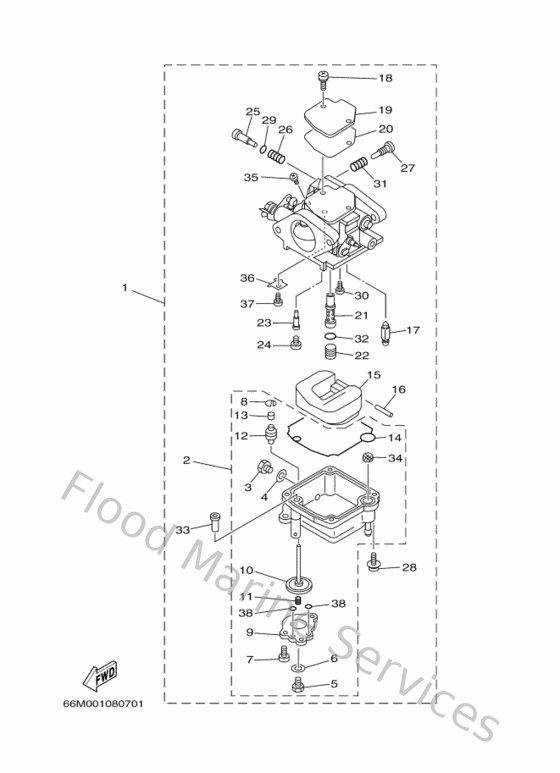

Diagram: Carburetor

Diagram

Parts List

Reference
Description
Price


1
66M143010000
Carburetor assembly 1
Loading…

↗
2
66M143810200
Body Float Chamber
Loading…

↗
3
62Y143830000
Screw, drain
Loading…

↗
4
66M143980000
Gasket
Loading…

↗
5
677143830100
Screw, drain
Loading…

↗
6
6L2143980000
Gasket
Loading…

↗
7
66M143250000
Screw, pan head
Loading…

↗
8
66M143770000
Stopper
Loading…

↗
9
66M149580000
Cover, diaphragm
Loading…

↗
10
66M143680100
Diaphragm assembly 1
Loading…

↗
11
6G8142750200
Spring
Loading…

↗
12
66M142390000
Seal
Loading…

↗
13
66M142250000
Cap
Loading…

↗
14
66M143840000
Gasket, float chamber
Loading…

↗
15
6L2143850000
Float
Loading…

↗
16
6E5143860100
Pin, float
Loading…

↗
17
6L2143920000
Valve, needle
Loading…

↗
18
979800411000
Screw, pan head (e56)
Loading…

↗
19
6L2141570000
Cover, mixing
Loading…

↗
20
62Y143990000
Gasket
Loading…

↗
21
66M143410000
Nozzle Main
Loading…

↗
22
66M143435200
Jet, main (#104)
Loading…

↗
23
66M143422300
Jet, pilot (#45)
Loading…

↗
24
66M143550000
Plug
Loading…

↗
25
12V141050000
Pilot screw set
Loading…

↗
26
30X143340000
Spring, air adjusting
Loading…

↗
27
62Y143210000
Screw, throttle
Loading…

↗
28
979800411200
Screw, pan head (686)
Loading…

↗
29
5H0143970000
O-ring
Loading…

↗
30
989800400600
Screw, bind(6l2)
Loading…

↗
31
646142120100
Spring, pilot adjusting
Loading…

↗
32
6F5143970000
O-ring
Loading…

↗
33
66M142720000
Valve, check seat
Loading…

↗
34
66M148270000
Filter
Loading…

↗
36
66M141570000
Cover Mixing
Loading…

↗
37
985800300500
Screw, pan head(78g)
Loading…

↗
38
69M245330000
O-ring
Loading…

↗
