F20AM (2001)
Carburetor

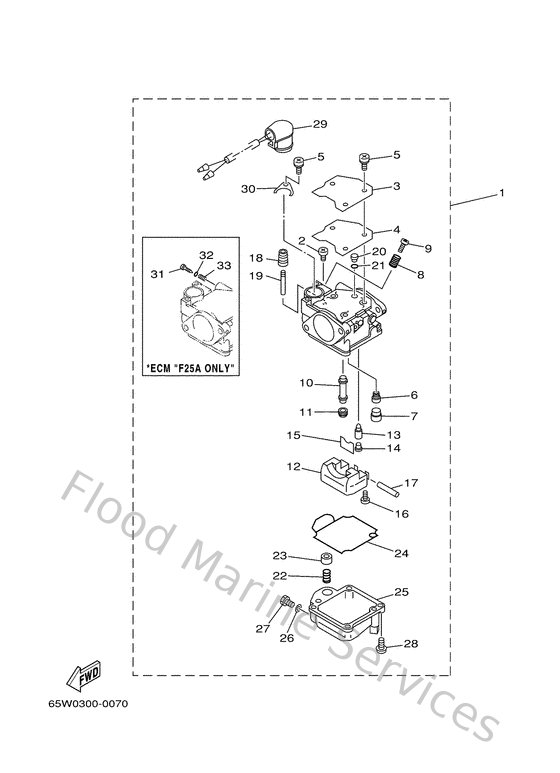

Diagram: Carburetor
Parts List
Reference
Description
Price
1
65W149011000
Carburetor assembly 1
Loading…
↗
2
985800400600
Screw, pan head (7h3)
Loading…
↗
3
65W145720000
Plate
Loading…
↗
4
65W141261000
Gasket
Loading…
↗
5
978030401000
Screw, pan head (e56)
Loading…
↗
6
65W149480700
Jet (#50)
Loading…
↗
7
679149660000
Rubber cap
Loading…
↗
8
905011032600
Spring coil(663)(carb)
Loading…
↗
9
63V145230000
Screw, stop
Loading…
↗
10
65W149470000
Jet Needle
Loading…
↗
11
65W149432900
Jet, main (#112)
Loading…
↗
12
63V149850000
Float
Loading…
↗
13
6G1145460000
Valve, needle
Loading…
↗
14
676141860000
Pin, valve
Loading…
↗
15
633141590000
Clip
Loading…
↗
16
985800400800
Screw, pan head (713)
Loading…
↗
17
6H4145480000
Pin, float arm
Loading…
↗
18
65W143730000
Cover, plunger cap
Loading…
↗
19
65W143790000
Rod, starter
Loading…
↗
20
65W1414F0000
Jet, pilot (# 52)
Loading…
↗
21
65W141470000
O-ring
Loading…
↗
22
65W143350000
Spring, plunger
Loading…
↗
23
65W143710000
Plunger, starter
Loading…
↗
24
65W143840000
Gasket, float chamber
Loading…
↗
25
65W149802000
Body, float chamber
Loading…
↗
26
6G1143980000
Washer
Loading…
↗
27
65W149920000
Screw, drain
Loading…
↗
28
979800411400
Screw, pan head(ga5)
Loading…
↗
29
65W143802000
Prime starter assembly
Loading…
↗
30
65W143460000
Plate
Loading…
↗
31
65W149231000
Screw, pilot
Loading…
↗
32
67C143970000
O-ring
Loading…
↗
33
67C145550000
Spring
