Yamaha Outboard Parts - Carburetor - F45A (1998) | Flood Marine

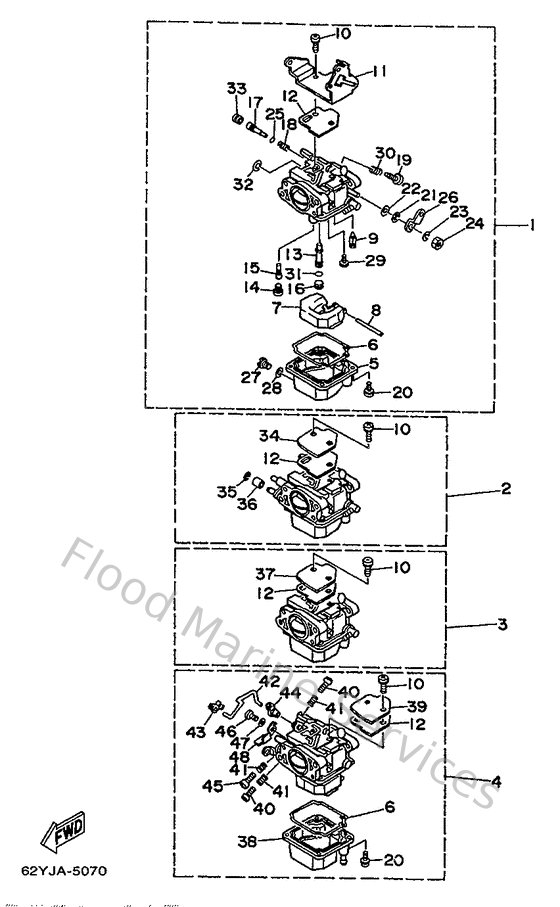

Diagram: Carburetor

Diagram

Parts List

Reference
Description
Price


1
62Y149010100
Carburetor assembly 1
Loading…

↗
2
62Y149020100
Carburetor assembly 2
Loading…

↗
3
64J149030100
Carburetor assembly 3
Loading…

↗
4
62Y149040100
Carburetor assembly 4
Loading…

↗
5
62Y143810000
Body Float Chamber
Loading…

↗
6
6L2143840000
Gasket, float chamber
Loading…

↗
7
6L2143850000
Float
Loading…

↗
8
6E5143860100
Pin, float
Loading…

↗
9
6L2143920000
Valve, needle
Loading…

↗
10
979800411000
Screw, pan head (e56)
Loading…

↗
11
62Y141570000
Cover, Mixing
Loading…

↗
12
62Y143990000
Gasket
Loading…

↗
13
62Y143410000
Nozzle, main
Loading…

↗
14
62Y143435600
Jet, main (#112)
Loading…

↗
15
62Y143422100
Jet, pilot (#42)
Loading…

↗
16
62Y143550000
Plug
Loading…

↗
17
12V141050000
Pilot screw set
Loading…

↗
18
30X143340000
Spring, air adjusting
Loading…

↗
19
62Y143210000
Screw, throttle
Loading…

↗
20
985800401200
Screw, pan head (686)
Loading…

↗
21
934300430100
Circlip
Loading…

↗
22
62Y144750000
Washer
Loading…

↗
23
6A1143560000
Washer
Loading…

↗
24
654143630100
Nut
Loading…

↗
25
5H0143970000
O-ring
Loading…

↗
27
62Y143830000
Screw, drain
Loading…

↗
28
62Y143980000
Gasket
Loading…

↗
29
989800400600
Screw, bind(6l2)
Loading…

↗
30
646142120100
Spring, pilot adjusting
Loading…

↗
31
6F5143970000
O-ring
Loading…

↗
32
6L2143570000
Washer, plain
Loading…

↗
33
50M143550000
Plug
Loading…

↗
34
6L2141570000
Cover, mixing
Loading…

↗
35
62Y141590000
Clip
Loading…

↗
36
62Y142670000
Roller
Loading…

↗
38
62Y143811000
Body, Float Chamber
Loading…

↗
42
62Y143790000
Rod, Starter
Loading…

↗
43
6F5412620100
Joint, throttle lever
Loading…

↗
44
62Y412620000
Joint, choke lever
Loading…

↗
45
664143210100
Screw, throttle
Loading…

↗
46
664143270100
Screw
Loading…

↗
47
62Y145970000
Washer
Loading…

↗
48
62Y145730000
Lever
Loading…

↗
