F8CMH (2001)
Carburetor

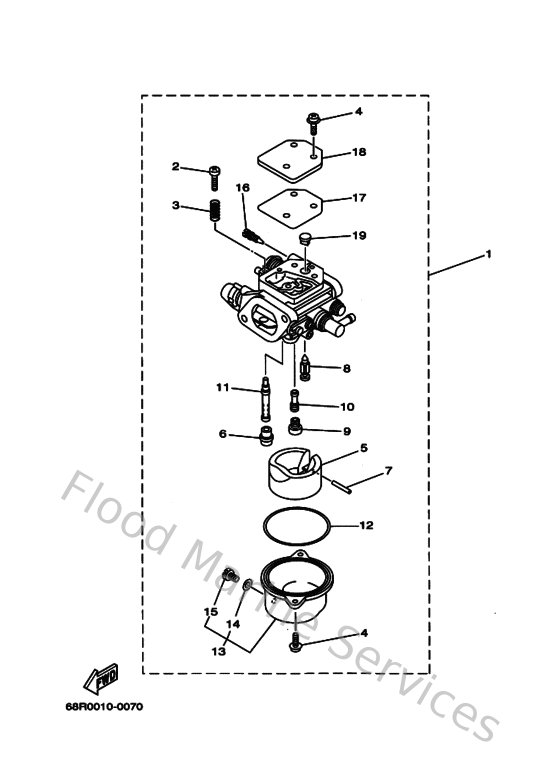

Diagram: Carburetor
Parts List
Reference
Description
Price
1
68T143010000
Carburetor & accel link 68t00
Loading…
↗
2
6E5143210000
Screw, throttle
Loading…
↗
3
6J8143340000
Spring, throttle
Loading…
↗
4
985800401200
Screw, pan head (686)
Loading…
↗
5
68T143850000
Float
Loading…
↗
6
67D149660000
Rubber cap
Loading…
↗
7
67D143860000
Pin, float
Loading…
↗
8
68T145460000
Valve, needle
Loading…
↗
9
68T1492E3700
Jet, main (#74)
Loading…
↗
10
68T1492F1K00
Jet, air slow (#39)
Loading…
↗
11
68T1492A0000
Nozzle, main
Loading…
↗
12
67D149840000
Gasket, float chamber
Loading…
↗
13
68T149810000
Body, float chamber
Loading…
↗
14
6J8149950000
Gasket, drin screw
Loading…
↗
15
66T149910000
Plug, drain
Loading…
↗
16
67D143230000
Screw, air adjusting
Loading…
↗
17
67D145360000
Gasket
Loading…
↗
18
67D145270000
Plate
Loading…
↗
19
68T141260000
Plug
Loading…
↗
