Yamaha Outboard Parts - Carburetor - FT9.9AMH (1996) | Flood Marine

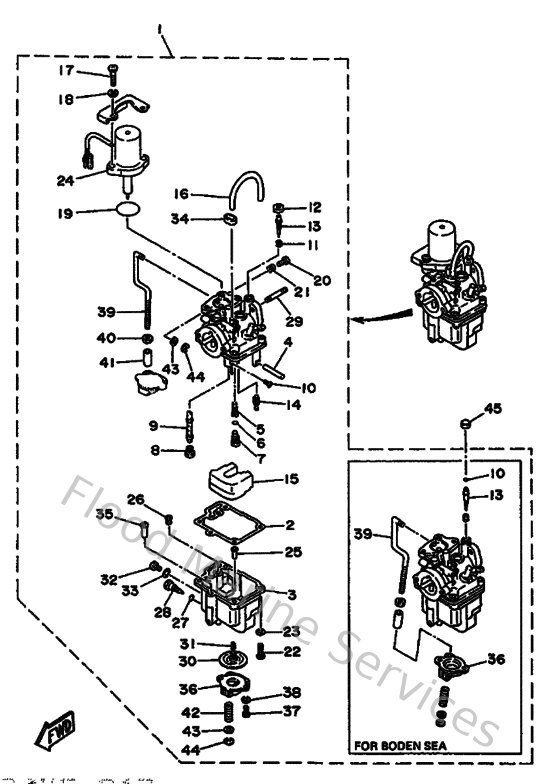

Diagram: Carburetor

Diagram

Parts List

Reference
Description
Price


2
6G8143840100
Gasket, float chamber
Loading…

↗
3
6G8143810200
Body Float Chamber
Loading…

↗
4
647143861000
Pin, float
Loading…

↗
5
6G8143422400
Jet Pilot (#48)
Loading…

↗
6
654141980000
Gasket
Loading…

↗
7
6G8143450000
Plug
Loading…

↗
8
648143434300
Jet, main (#86)
Loading…

↗
9
6G8143412000
Nozzle, main
Loading…

↗
10
6G8142160000
Screw
Loading…

↗
11
647143340000
Spring, air adjusting.
Loading…

↗
12
6G8149970000
Seal
Loading…

↗
13
6G8143230000
Screw, air adjusting
Loading…

↗
14
6G8143920000
Valve, needle
Loading…

↗
15
6G8143850000
Float assembly
Loading…

↗
16
6G8141970100
Pipe
Loading…

↗
17
978800601800
Screw, pan head(6e5)
Loading…

↗
18
929950610000
Washer(6a1)
Loading…

↗
19
1HV141470000
O-ring
Loading…

↗
20
664143210100
Screw, throttle
Loading…

↗
21
646142120000
Spring, pilot adjusting
Loading…

↗
22
985800401600
Screw, panhead (796)
Loading…

↗
23
929900410000
Ybs67-4 washer, spring
Loading…

↗
24
6G81410A0100
Starter set
Loading…

↗
25
6G8148270000
Filter
Loading…

↗
26
6A4143443000
Jet, starter # 60
Loading…

↗
27
5Y1143970000
O-ring
Loading…

↗
28
6G8143830000
Screw Drain
Loading…

↗
29
9011606M2600
Bolt, Stud
Loading…

↗
30
6G8143680200
Diaphragm assembly 1
Loading…

↗
31
6G8142750100
Spring
Loading…

↗
32
978900500600
Screw,panhead (eg9)
Loading…

↗
33
646141980100
Gasket
Loading…

↗
34
6G8143490000
Pipe
Loading…

↗
35
6G8142170100
Valve, Choke
Loading…

↗
36
6G8142930300
Cover 1
Loading…

↗
37
985800401000
Screw, pan head (e56)
Loading…

↗
39
6G8143790000
Rod Starter
Loading…

↗
40
988130310000
Nut
Loading…

↗
41
6G8142290000
Shaft Choke
Loading…

↗
42
6G8142860100
Spring
Loading…

↗
43
6G8143570000
Washer Plain
Loading…

↗
44
389141370000
Clip, needle
Loading…

↗
45
50M143550000
Plug
Loading…

↗
