L130BETOL (2001)
Carburetor

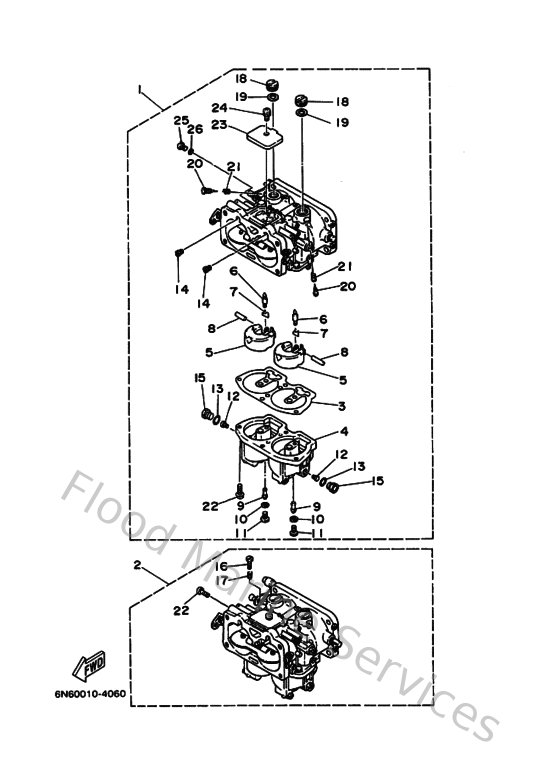

Diagram: Carburetor
Parts List
Reference
Description
Price
1
6L1143010400
Carburetor assembly 1
Loading…
↗
2
6L1143020400
Carburetor assembly 2
Loading…
↗
3
64D143840100
Gasket, float chamber
Loading…
↗
4
64D143810000
Body, float chamber
Loading…
↗
5
6E5143850200
Float
Loading…
↗
6
6E5145460000
Valve, needle
Loading…
↗
7
6E5141590000
Clip
Loading…
↗
8
6E5143860200
Pin, float
Loading…
↗
9
64D1492F4100
Jet, air slow (#82)
Loading…
↗
10
61U149590000
Gasket
Loading…
↗
11
64D143940000
Valve, drain
Loading…
↗
12
64D1492E9000
Jet, main (#180)
Loading…
↗
13
6E5143980000
Gasket
Loading…
↗
14
61A1492H1200
Jet, slow air (#60)
Loading…
↗
15
61A143830100
Screw, drain
Loading…
↗
16
6E5143210000
Screw, throttle
Loading…
↗
17
6J8143340000
Spring, throttle
Loading…
↗
18
6E5143280100
Plug
Loading…
↗
19
6E5149790000
Gasket
Loading…
↗
20
6E5143230300
Screw, air adjusting
Loading…
↗
21
6E5142230000
Spring, air adjusting
Loading…
↗
22
9015705M1900
Screw, pan head
Loading…
↗
23
6E5145270100
Plate
Loading…
↗
24
979800510800
Screw, with washer
Loading…
↗
25
6E5143240000
Screw, flat head
Loading…
↗
26
6J8149590000
Gasket, drin screw
Loading…
↗
