L200FETOL (1997)
Carburetor

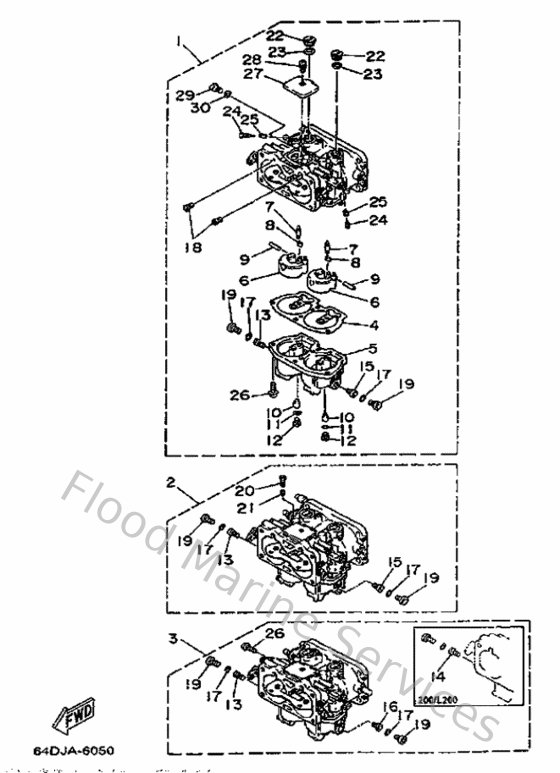

Diagram: Carburetor
Parts List
Reference
Description
Price
1
64D143010000
Carburetor assembly 1
Loading…
↗
2
64E143020000
Carburetor assembly 2 (64E-03)
Loading…
↗
3
64E14303S200
Carburetor assembly 3
Loading…
↗
4
64D143840100
Gasket, float chamber
Loading…
↗
5
64D143811000
Body, Float Chamber
Loading…
↗
6
6E5143850200
Float
Loading…
↗
7
6E5145460000
Valve, needle
Loading…
↗
8
6E5141590000
Clip
Loading…
↗
9
6E5143860200
Pin, float
Loading…
↗
10
64D1492F4200
Jet, air slow
Loading…
↗
11
61U149590000
Gasket
Loading…
↗
12
64D143940000
Valve, drain
Loading…
↗
13
64D1492E7500
Jet, main
Loading…
↗
14
64D1492E7600
Jet, main
Loading…
↗
15
64D1492E7300
Jet, Main (#146)
Loading…
↗
16
64D1492E7900
Jet, main
Loading…
↗
17
6E5143980100
Gasket
Loading…
↗
18
61A1492H1200
Jet, slow air (#60)
Loading…
↗
19
61A143830100
Screw, drain
Loading…
↗
20
6E5143210000
Screw, throttle
Loading…
↗
21
6J8143340000
Spring, throttle
Loading…
↗
22
6E5143280100
Plug
Loading…
↗
23
6E5149790000
Gasket
Loading…
↗
24
6E5143230300
Screw, air adjusting
Loading…
↗
25
6E5142230000
Spring, air adjusting
Loading…
↗
26
979800511600
Screw, pan head
Loading…
↗
27
6E5145270100
Plate
Loading…
↗
28
979800510800
Screw, with washer
Loading…
↗
29
6E5143240000
Screw, flat head
Loading…
↗
30
6J8149950000
Gasket, drin screw
Loading…
↗
