Yamaha Outboard Parts - Carburetor - L225CETO (1995) | Flood Marine

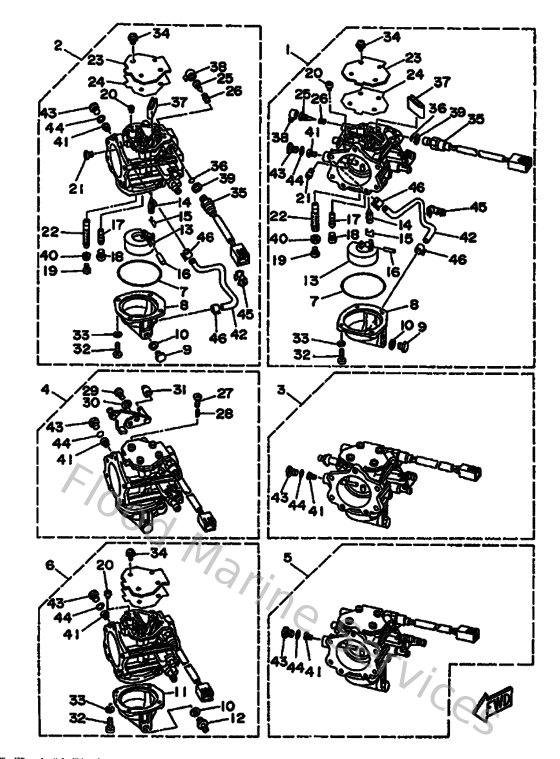

Diagram: Carburetor

Diagram

Parts List

Reference
Description
Price


7
61A143840000
Gasket, float chamber
Loading…

↗
8
61A143811100
Body, Float Chamber
Loading…

↗
9
61A143830100
Screw, drain
Loading…

↗
10
61A149950000
Gasket
Loading…

↗
11
61A143810100
Body, Float Chamber
Loading…

↗
12
61A143831000
Screw, Drain
Loading…

↗
13
61A143850000
Float
Loading…

↗
14
6E5145460000
Valve, needle
Loading…

↗
15
6E5141590000
Clip
Loading…

↗
16
61A143860000
Pin, Float
Loading…

↗
17
61A1492F4700
Jet, Air Slow
Loading…

↗
18
61A143940000
Valve Drain
Loading…

↗
19
61A1492E7500
Jet, Main
Loading…

↗
20
61A1492G4000
Jet, Main Air Bleed (200)
Loading…

↗
21
61A1492H1400
Jet Slow Air Bleed
Loading…

↗
22
62J1492A0000
Nozzle, Main
Loading…

↗
23
61A145270000
Plate
Loading…

↗
24
61A149590000
Gasket
Loading…

↗
25
6E5143230300
Screw, air adjusting
Loading…

↗
26
6E5142230000
Spring, air adjusting
Loading…

↗
27
6E5143210000
Screw, throttle
Loading…

↗
28
6J8143340000
Spring, throttle
Loading…

↗
29
6J8145920100
Screw
Loading…

↗
30
929900560000
Washer, plain (646)
Loading…

↗
31
6J8145780000
Collar
Loading…

↗
32
985800501600
Screw, pan head(6b0)
Loading…

↗
33
929900510000
Ybs67-5 washer, spring
Loading…

↗
34
979800510800
Screw, with washer
Loading…

↗
35
61A861200000
Solenoid valve assembly
Loading…

↗
36
61A145610000
O-ring
Loading…

↗
37
61A141630000
Spacer
Loading…

↗
38
61A141180000
Cap
Loading…

↗
39
61A141980000
Gasket
Loading…

↗
40
61A141640000
Nut, Holding
Loading…

↗
41
61A1492E4500
Jet, Main
Loading…

↗
42
61A142980000
Pipe
Loading…

↗
46
9046511M1000
Clamp
Loading…

↗
