Yamaha Outboard Parts - Carburetor - L250AETO (1997) | Flood Marine

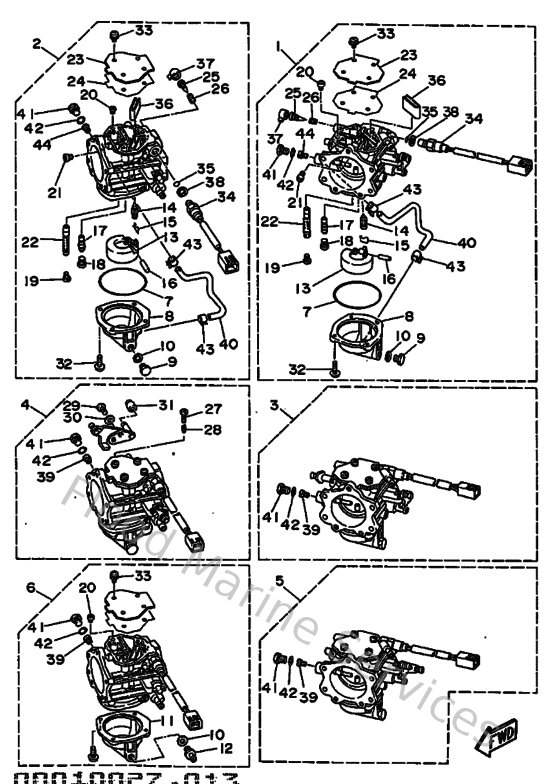

Diagram: Carburetor

Diagram

Parts List

Reference
Description
Price


1
61A141000500
Carburetor Assembly 1
Loading…

↗
2
61A143010500
Carburetor Assembly 2
Loading…

↗
3
61A141010500
Carburetor Assembly 3
Loading…

↗
4
61A143020600
Carburetor assembly 2
Loading…

↗
5
61A141020500
Carburetor Assembly 5
Loading…

↗
6
61A143030500
Carburetor Assembly 6
Loading…

↗
7
61A143840000
Gasket, float chamber
Loading…

↗
8
61A143811100
Body, Float Chamber
Loading…

↗
9
61A143830100
Screw, drain
Loading…

↗
10
61A149950000
Gasket
Loading…

↗
11
61A143810100
Body, Float Chamber
Loading…

↗
12
61A143831000
Screw, Drain
Loading…

↗
13
61A143850000
Float
Loading…

↗
14
6E5145460000
Valve, needle
Loading…

↗
15
6E5141590000
Clip
Loading…

↗
16
61A143860000
Pin, Float
Loading…

↗
17
61A1492F5000
Jet, air slow (#100)
Loading…

↗
18
61A143940000
Valve Drain
Loading…

↗
19
62J1492E8100
Jet Main (#162)
Loading…

↗
20
61A1492G5200
Jet Main Air (#260)
Loading…

↗
21
61A1492H1400
Jet Slow Air Bleed
Loading…

↗
22
61A1492A0100
Nozzle, main
Loading…

↗
23
61A145270000
Plate
Loading…

↗
24
61A149590000
Gasket
Loading…

↗
25
6E5143230300
Screw, air adjusting
Loading…

↗
26
6E5142230000
Spring, air adjusting
Loading…

↗
27
6E5143210000
Screw, throttle
Loading…

↗
28
6J8143340000
Spring, throttle
Loading…

↗
29
6J8145920100
Screw
Loading…

↗
30
929900560000
Washer, plain (646)
Loading…

↗
31
6J8145780000
Collar
Loading…

↗
32
979800511600
Screw, pan head
Loading…

↗
33
979800510800
Screw, with washer
Loading…

↗
34
61A861200000
Solenoid valve assembly
Loading…

↗
35
61A145610000
O-ring
Loading…

↗
36
61A141630000
Spacer
Loading…

↗
37
61A141180000
Cap
Loading…

↗
38
61A141980000
Gasket
Loading…

↗
39
61A1492E5H00
Jet, Main (#115)
Loading…

↗
40
61A142980000
Pipe
Loading…

↗
43
9046511M1000
Clamp
Loading…

↗
44
61A1492E5C00
Jet Main
Loading…

↗
