F100AET (2000)
Carburetor 1

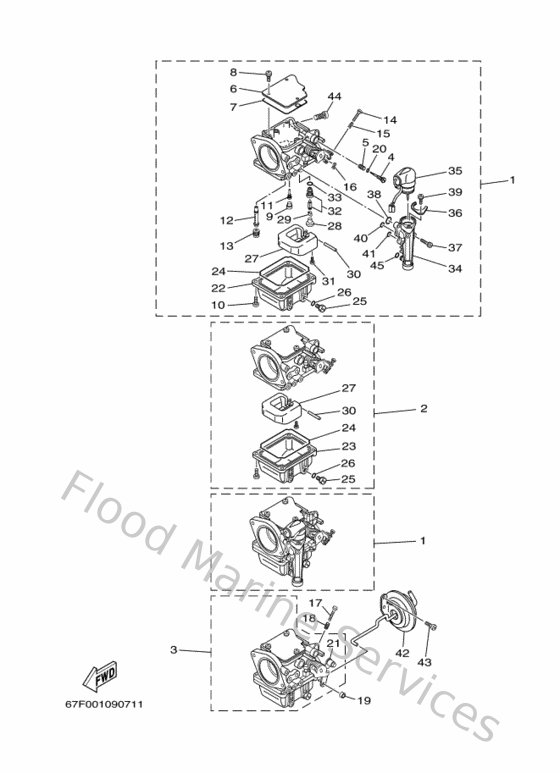

Diagram: Carburetor 1
Parts List
Reference
Description
Price
1
67F149010000
Carburetor assembly 1
Loading…
↗
2
67F149020000
Carburetor assembly 2
Loading…
↗
3
67F149040000
Carburetor assembly 4
Loading…
↗
4
67F149230000
Screw, pilot
Loading…
↗
5
697145550000
Spring
Loading…
↗
6
67F141460000
Plate
Loading…
↗
7
67F141470000
Gasket
Loading…
↗
8
978030401000
Screw, pan head (e56)
Loading…
↗
9
676149660000
Rubber cap
Loading…
↗
10
985800401400
Screw, pan head(ga5)
Loading…
↗
11
67F149480400
Jet (#42)
Loading…
↗
12
67F149470000
Jet, needle
Loading…
↗
13
67F149438300
Jet, main (#128)
Loading…
↗
14
67F145670000
Screw
Loading…
↗
15
67F145550000
Spring
Loading…
↗
16
67F145560000
Spring
Loading…
↗
17
63V145230000
Screw, stop
Loading…
↗
18
905011032600
Spring coil(663)(carb)
Loading…
↗
19
67F149980000
Bush
Loading…
↗
20
67F143970000
O-ring
Loading…
↗
21
6H2145780000
Collar
Loading…
↗
22
67F149800000
Body, float chamber
Loading…
↗
23
67F149801000
Body, float chamber
Loading…
↗
24
67F149840000
Gasket, float chamber
Loading…
↗
25
6H3149920000
Screw, drain
Loading…
↗
26
932100423000
O-ring (371)
Loading…
↗
27
6H4149850100
Float
Loading…
↗
28
676141860000
Pin, valve
Loading…
↗
29
663141590000
Clip
Loading…
↗
30
6H4145480000
Pin, float arm
Loading…
↗
31
985800400800
Screw, pan head (713)
Loading…
↗
32
6H3145900000
Needle valve assembly
Loading…
↗
33
932100422800
O-ring (371)
Loading…
↗
34
67F143780000
Body, starter
Loading…
↗
35
67F143800100
Prime starter assembly
Loading…
↗
36
67F141780000
Plate, starter lever
Loading…
↗
37
67F145920000
Screw
Loading…
↗
38
67F143980000
O-ring
Loading…
↗
39
67F145650000
Screw
Loading…
↗
40
67F143981000
O-ring
Loading…
↗
41
67F143982000
O-ring
Loading…
↗
42
67F143690000
Diaphragm assembly 2
Loading…
↗
43
67F143250000
Screw, pan head
Loading…
↗
44
67F143710000
Element, filter
Loading…
↗
45
67F143983000
O-ring
Loading…
↗
