F50AE (2001)
Carburetor 1

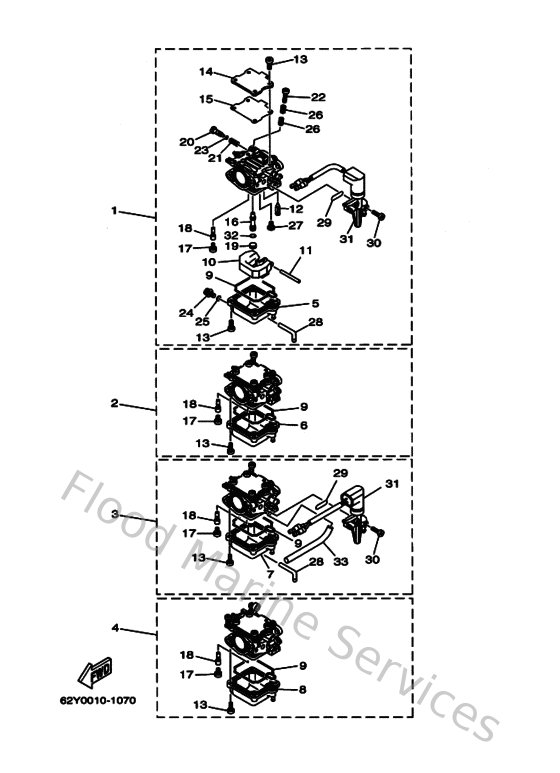

Diagram: Carburetor 1
Parts List
Reference
Description
Price
1
62Y149013000
Carburetor assembly 1
Loading…
↗
2
62Y149023000
Carburetor assembly 2
Loading…
↗
3
62Y149033000
Carburetor assembly 3
Loading…
↗
4
62Y149043000
Carburetor assembly 4
Loading…
↗
5
62Y143813000
Body, float chamber
Loading…
↗
6
62Y143814000
Body, float chamber
Loading…
↗
7
62Y143815000
Body, float chamber
Loading…
↗
8
62Y143816000
Body, float chamber
Loading…
↗
9
62Y143843000
Gasket, float chamber
Loading…
↗
10
6L2143850000
Float
Loading…
↗
11
6E5143860100
Pin, float
Loading…
↗
12
62Y143920000
Valve, needle
Loading…
↗
13
62Y143210000
Screw, throttle
Loading…
↗
14
62Y141573000
Cover, mixing
Loading…
↗
15
62Y143993000
Valve, bimetal
Loading…
↗
16
62Y143413000
Nozzle, main
Loading…
↗
17
62Y143435700
Jet, main (#114)
Loading…
↗
18
64J143422000
Jet, pilot (#39)
Loading…
↗
19
62Y143553000
Plug
Loading…
↗
20
62Y143233000
Screw, air adjusting
Loading…
↗
21
62Y143340000
Spring, air adjusting
Loading…
↗
22
62Y143211000
Screw, throttle
Loading…
↗
23
2T4143970000
O-ring
Loading…
↗
24
62Y143833000
Screw, drain
Loading…
↗
25
652143970000
Ring, o
Loading…
↗
26
62Y142120000
Spring, pilot adjusting
Loading…
↗
27
989800400600
Screw, bind(6l2)
Loading…
↗
28
62Y243113000
Pipe, fuel 1
Loading…
↗
29
62Y143983000
Gasket
Loading…
↗
30
62Y145673000
Screw
Loading…
↗
31
62Y143801000
Prime starter assembly
Loading…
↗
32
62Y142270000
O-ring
Loading…
↗
33
62Y243139000
Pipe 3
Loading…
↗
