F100AET (2000)
Carburetor 2

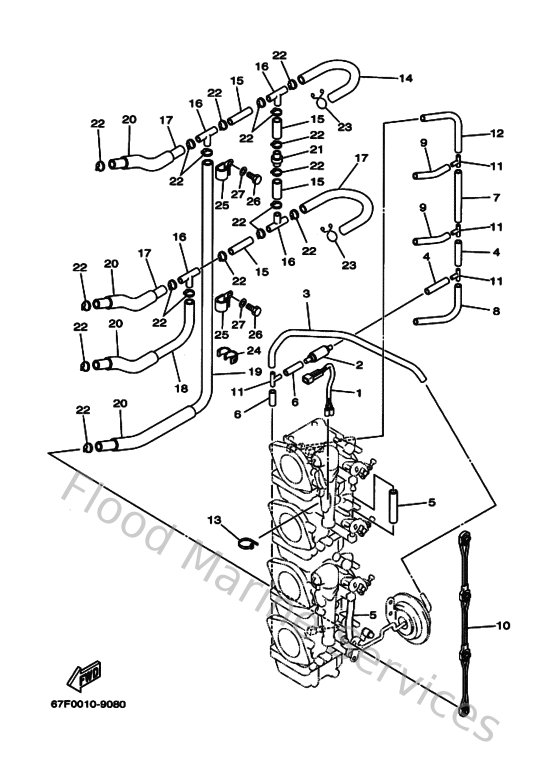

Diagram: Carburetor 2
Parts List
Reference
Description
Price
1
67F1412A0000
Wire harness assembly
Loading…
↗
2
67F131830000
Valve, check
Loading…
↗
3
67F143490000
Pipe
Loading…
↗
4
67F143491000
Pipe
Loading…
↗
5
67F143492000
Pipe
Loading…
↗
6
67F143493000
Pipe
Loading…
↗
7
67F143494000
Pipe
Loading…
↗
8
67F143495000
Pipe
Loading…
↗
9
67F143496000
Pipe
Loading…
↗
10
67F145850000
Rod, choke
Loading…
↗
11
67F141890000
Connector
Loading…
↗
12
67F143497000
Pipe
Loading…
↗
13
9046511M5900
Clamp(63m)
Loading…
↗
14
9044510M5300
Hose (l400)
Loading…
↗
15
9044510MG500
Hose (L35)
Loading…
↗
16
688243780000
Pipe, joint
Loading…
↗
17
9044510M4300
Hose (l400)
Loading…
↗
18
9044510MG600
Hose (l200)
Loading…
↗
19
9044510MG700
Hose (l350)
Loading…
↗
20
9044516M0700
Hose (l80)
Loading…
↗
21
67F243790000
Pipe Joint 4
Loading…
↗
22
904651009800
Clamp
Loading…
↗
23
9046710M0400
Clip, pipe 1 (6e9)
Loading…
↗
24
9046410M5700
Clamp
Loading…
↗
25
9046508M8300
Clamp
Loading…
↗
26
970950601200
Bolt(gh1)
Loading…
↗
27
929950660000
Washer, plain (646)
Loading…
↗
