F45A (1998)
Carburetor Link

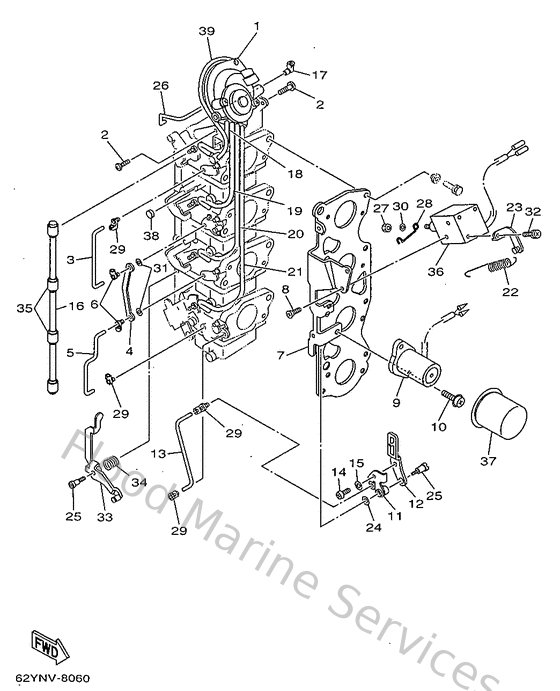

Diagram: Carburetor Link
Parts List
Reference
Description
Price
2
978900500600
Screw,panhead (eg9)
Loading…
↗
3
62Y145850000
Rod, Choke
Loading…
↗
4
62Y145851000
Rod, Choke
Loading…
↗
5
62Y145852000
Rod, Choke
Loading…
↗
6
62Y412621000
Joint Choke Lever
Loading…
↗
8
62Y145920000
Screw
Loading…
↗
9
62Y143800000
Prime starter assembly
Loading…
↗
10
62Y144290000
Screw
Loading…
↗
11
62Y141750000
Lever, Starter 1
Loading…
↗
13
62Y145853000
Rod, Choke
Loading…
↗
14
62Y145670000
Screw
Loading…
↗
15
929900560000
Washer, plain (646)
Loading…
↗
16
62Y145854000
Rod, Choke
Loading…
↗
17
62Y412620000
Joint, choke lever
Loading…
↗
18
62Y143491000
Pipe
Loading…
↗
19
62Y143492000
Pipe
Loading…
↗
20
62Y143490000
Pipe
Loading…
↗
21
62Y143493000
Pipe
Loading…
↗
22
62Y144870100
Spring
Loading…
↗
24
929900460000
Washer, plain (646)
Loading…
↗
25
62Y144291000
Screw
Loading…
↗
26
62Y145855000
Rod, Choke
Loading…
↗
27
62Y142580000
Nut, lock
Loading…
↗
28
62Y1212A0000
Wire, Plus Lead
Loading…
↗
29
6F5412620100
Joint, throttle lever
Loading…
↗
30
62Y144751000
Washer
Loading…
↗
32
979800410800
Screw, with washer(6m6)
Loading…
↗
33
62Y143600000
Throttle Damper assembly
Loading…
↗
34
62Y145550000
Spring
Loading…
↗
35
62Y145780000
Collar
Loading…
↗
36
6E9861110100
Coil, solenoid
Loading…
↗
37
62Y149670000
Cover
Loading…
↗
38
6G8144570000
Plug
Loading…
↗
