115AETOL (1985)
Control

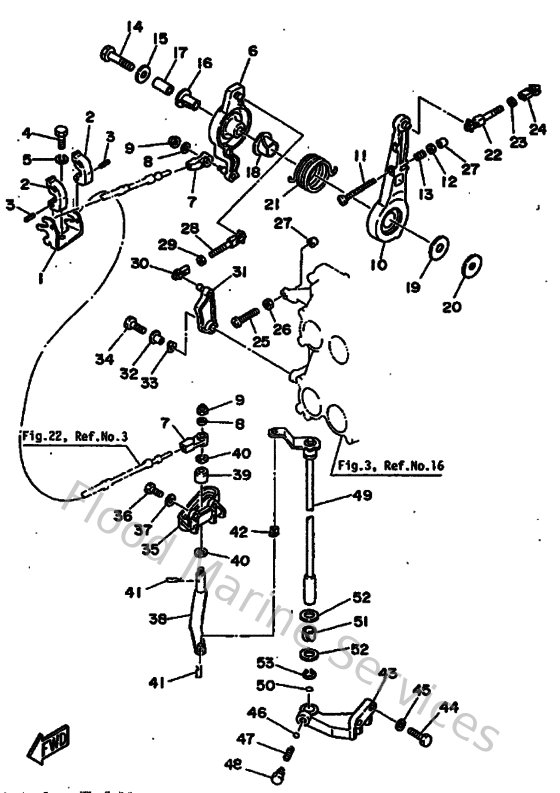

Diagram: Control
Parts List
Reference
Description
Price
1
6E5485310000
Bracket, remote control
Loading…
↗
2
6E5485380000
Clamp, cable
Loading…
↗
3
916903001200
Pin, spring
Loading…
↗
4
973130802000
Bolt(6td)
Loading…
↗
5
929900810000
Ybs67-8 washer, spring
Loading…
↗
6
6E5416320194
Lever, magneto control
Loading…
↗
7
6E5483440000
Cable end, remote control
Loading…
↗
8
929900620000
Ybs66-6 washer, plain
Loading…
↗
9
901850606200
Nut selflocking (656)
Loading…
↗
10
6E5416310194
Lever, magneto control
Loading…
↗
11
9015706M1200
Screw, pan head(697)
Loading…
↗
12
953030660000
Nut(661)
Loading…
↗
13
9050116M1200
Spring, compression (688)
Loading…
↗
14
970130804500
Bolt
Loading…
↗
15
9020108M2300
Washer, plate (6e5)
Loading…
↗
16
903861208900
Bushing(663)
Loading…
↗
17
9038708M1600
Collar
Loading…
↗
18
9038622M1300
Bushing (688)
Loading…
↗
19
902021209200
Washer, plate(663)
Loading…
↗
20
9020108M1300
Washer plate (682)
Loading…
↗
21
9050829M1200
Spring (6e5)
Loading…
↗
22
6E5416360100
Rod, magneto control
Loading…
↗
23
953800560000
Nut, hexagon (663)
Loading…
↗
24
662412370100
Joint, link
Loading…
↗
25
9015706M0000
Screw, pan head(6h4)
Loading…
↗
26
953800660000
Nut(661)
Loading…
↗
27
688441940000
Cap
Loading…
↗
28
688416360000
Rod 1
Loading…
↗
31
6E5412130000
Cam, accel.
Loading…
↗
32
9038706M2900
Coller (6a0)
Loading…
↗
33
9020610M0400
Washer, wave (676)
Loading…
↗
34
973130602500
Bolt
Loading…
↗
35
6E54411700EJ
Bracket
Loading…
↗
36
970800602000
Bolt(7u8)
Loading…
↗
37
929030660000
Washer, plain (646)
Loading…
↗
38
6E5441210000
Lever, Shift Rod
Loading…
↗
39
6E5441220000
Bushing, shift rod lever
Loading…
↗
40
9020208M2000
Washer, plate (6e5)
Loading…
↗
41
904681800800
Clip 620436610000
Loading…
↗
43
6E54411800EJ
Bracket 2
Loading…
↗
44
970130803000
Bolt
Loading…
↗
45
929030860000
Washer, plain (663)
Loading…
↗
46
9350104M0200
Ball (697)
Loading…
↗
47
905011208200
Spring 6484411600
Loading…
↗
48
648427150000
Bushing 2
Loading…
↗
49
6E5441202400
Handle gear shift assembly
Loading…
↗
50
932100916500
O-ring
Loading…
↗
51
9038616M6600
Bush(6e5)
Loading…
↗
52
902021606100
Washer, plate(663)
Loading…
↗
53
934101600600
Circlip
Loading…
↗
