130BETOL (1996)
Control

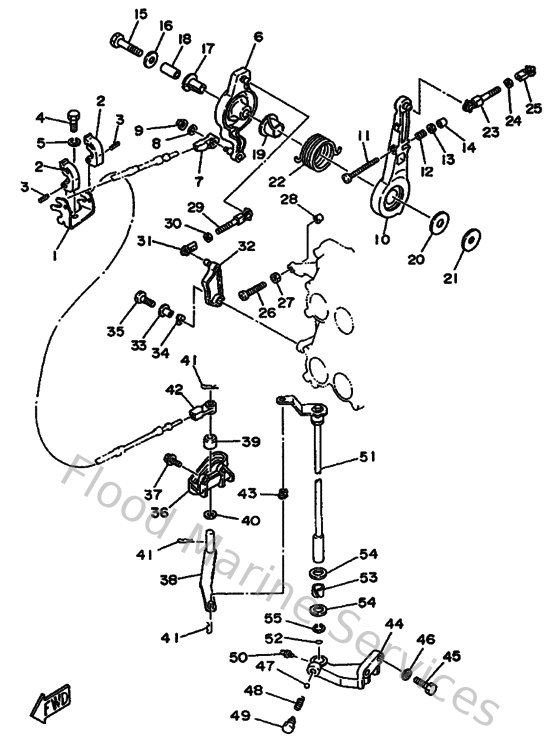

Diagram: Control
Parts List
Reference
Description
Price
1
6E5485310000
Bracket, remote control
Loading…
↗
2
6E5485380000
Clamp, cable
Loading…
↗
6
6E5416320294
Lever, magneto control
Loading…
↗
7
6E5483440000
Cable end, remote control
Loading…
↗
10
6E5416310194
Lever, magneto control
Loading…
↗
14
688441940000
Cap
Loading…
↗
23
6E5416360100
Rod, magneto control
Loading…
↗
25
6H1412370000
Joint, link
Loading…
↗
29
688416360000
Rod 1
Loading…
↗
32
6E5412130100
Cam, accel.
Loading…
↗
36
6E5441170094
Bracket
Loading…
↗
38
6E5441210100
Lever, shift rod
Loading…
↗
39
6E5441220000
Bushing, shift rod lever
Loading…
↗
44
6E5441180194
Bracket 2
Loading…
↗
49
648427150000
Bushing 2
Loading…
↗
51
6E5441200300
Handle gear shift assembly
Loading…
↗
