175AETOL (1988)
Control

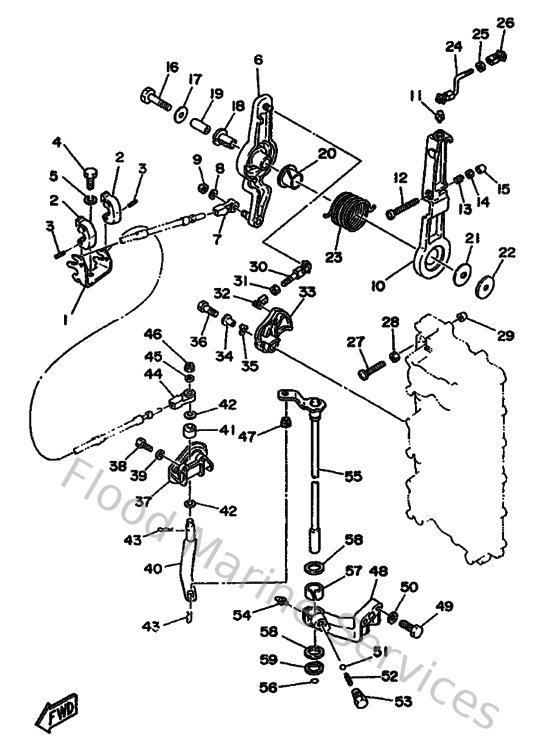

Diagram: Control
Parts List
Reference
Description
Price
1
6E5485310000
Bracket, remote control
Loading…
↗
2
6E5485380000
Clamp, cable
Loading…
↗
3
916903001200
Pin, spring
Loading…
↗
4
970130802000
Bolt(6td)
Loading…
↗
5
929900810000
Ybs67-8 washer, spring
Loading…
↗
6
6G5416320194
Lever, Magneto Control
Loading…
↗
7
6E5483440000
Cable end, remote control
Loading…
↗
8
929900620000
Ybs66-6 washer, plain
Loading…
↗
9
901850606200
Nut selflocking (656)
Loading…
↗
10
6G5416310194
Lever, magneto control
Loading…
↗
11
663855180000
Joint, ball
Loading…
↗
12
901570601300
Screw, pan head(697)
Loading…
↗
13
9050116M1200
Spring, compression (688)
Loading…
↗
14
953030660000
Nut(661)
Loading…
↗
15
688441940000
Cap
Loading…
↗
16
970130804500
Bolt
Loading…
↗
17
9020108M2300
Washer, plate (6e5)
Loading…
↗
18
903861208900
Bushing(663)
Loading…
↗
19
90387084J800
Collar
Loading…
↗
20
9038622M1300
Bushing (688)
Loading…
↗
21
902021209200
Washer, plate(663)
Loading…
↗
23
9050829M1200
Spring (6e5)
Loading…
↗
24
6G5416360100
Rod, magneto control
Loading…
↗
25
953800560000
Nut, hexagon (663)
Loading…
↗
26
6H1412370000
Joint, link
Loading…
↗
27
9015706M0000
Screw, pan head(6h4)
Loading…
↗
30
6G5412110100
Link, accel
Loading…
↗
33
6G5412130000
Cam, accel
Loading…
↗
34
9038706M2900
Coller (6a0)
Loading…
↗
35
9020610M0400
Washer, wave (676)
Loading…
↗
36
9010106M2700
Bolt
Loading…
↗
37
6E5441170094
Bracket
Loading…
↗
38
973130602000
Bolt(7u8)
Loading…
↗
39
929900660000
Washer, plain (646)
Loading…
↗
40
6E5441210000
Lever, Shift Rod
Loading…
↗
41
6E5441220000
Bushing, shift rod lever
Loading…
↗
42
9020208M2000
Washer, plate (6e5)
Loading…
↗
43
904681800800
Clip 620436610000
Loading…
↗
47
9038606M1200
Bushing (688)
Loading…
↗
48
6E5441180194
Bracket 2
Loading…
↗
49
973130803000
Bolt
Loading…
↗
50
929900860000
Washer, plain (663)
Loading…
↗
51
9350104M0200
Ball (697)
Loading…
↗
52
905011208200
Spring 6484411600
Loading…
↗
53
648427150000
Bushing 2
Loading…
↗
54
9370006M0300
Nipple, grease(6a1)
Loading…
↗
55
6E5441200100
Handle gear shift assembly
Loading…
↗
56
932100935000
O-ring
Loading…
↗
57
9038616M6600
Bush(6e5)
Loading…
↗
58
902021606100
Washer, plate(663)
Loading…
↗
59
990091640000
Circlip(13t)
Loading…
↗
