Yamaha Outboard Parts - Control - 20CMH (1985) | Flood Marine

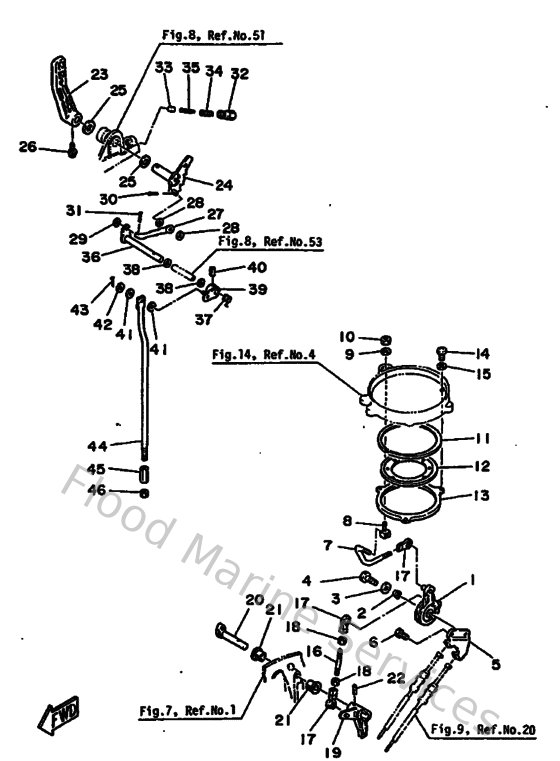

Diagram: Control

Diagram

Parts List

Reference
Description
Price


1
664416310094
Lever, magneto control
Loading…

↗
2
9038706M0200
Collar (664)
Loading…

↗
4
973130602500
Bolt
Loading…

↗
5
664144970000
Stay Throttle Wire
Loading…

↗
6
970130601200
Bolt(gh1)
Loading…

↗
7
664416360000
Rod, Magneto Control
Loading…

↗
8
648416350000
Shaft, Link Connecting
Loading…

↗
9
902010555600
Washer plate (664)
Loading…

↗
10
953030560000
Nut, hexagon (663)
Loading…

↗
11
6N0G16130000
Plate, base friction
Loading…

↗
12
695416110094
Retainer, Magneto Base
Loading…

↗
13
695416120000
Retainer, Magneto Base
Loading…

↗
14
978030501000
Screw, pan head(62x)
Loading…

↗
15
929030560000
Washer, plain (646)
Loading…

↗
16
901160522000
Bolt, Stud
Loading…

↗
17
662412370100
Joint, link
Loading…

↗
19
6A9421540094
Lever Throttle Control
Loading…

↗
20
656421530094
Shaft, throttle control
Loading…

↗
21
903861000900
Bushing 6484418600
Loading…

↗
22
916904001800
Pin spring(664)
Loading…

↗
23
6894411100EJ
Handle, Gear Shift
Loading…

↗
24
664441130100
Cam plate, handle
Loading…

↗
25
902021203100
Washer, plate 6484412600
Loading…

↗
26
9010506M0700
Bolt (689)
Loading…

↗
27
664441420000
Joint
Loading…

↗
28
902020600700
Washer plate 626441880000
Loading…

↗
29
929900560000
Washer, plain (646)
Loading…

↗
30
914901601000
Pin, cotter
Loading…

↗
31
914901201000
Pin, cotter (6g8)
Loading…

↗
32
664427150000
Bushing 2
Loading…

↗
33
664441670100
Plunger, shift cam
Loading…

↗
34
9050114M0700
Spring, compresion (664)
Loading…

↗
35
9050109M0800
Spring, compresion (664)
Loading…

↗
36
689441210100
Lever, shift rod 1
Loading…

↗
37
9050814M1300
Spring (689)
Loading…

↗
38
902021002400
Washer plate 648441880000
Loading…

↗
39
689441250000
Lever, shift rod 2
Loading…

↗
40
916904001600
Pin, spring (648)
Loading…

↗
43
914902001000
Pin, cotter
Loading…

↗
44
664441430000
Rod, shift 1
Loading…

↗
45
648441460000
Connector, shift rod 2
Loading…

↗
46
901700702100
Nut hexagon 648441280000
Loading…

↗
