Yamaha Outboard Parts - Control - 220AETL (1985) | Flood Marine

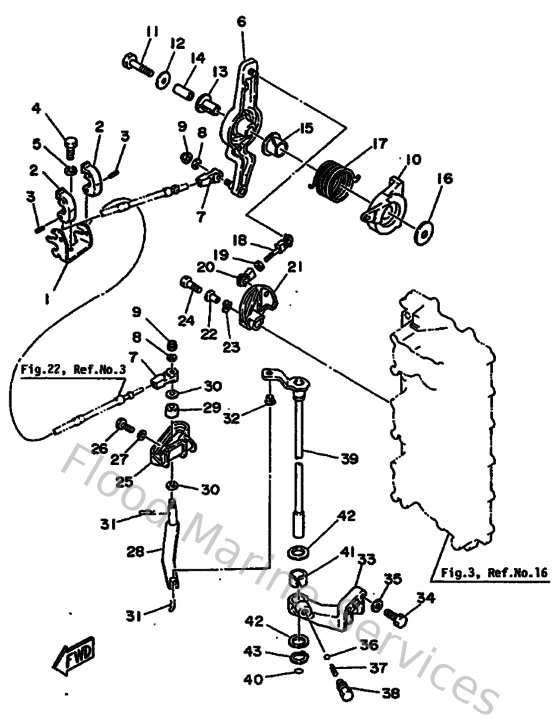

Diagram: Control

Diagram

Parts List

Reference
Description
Price


1
6E5485310000
Bracket, remote control
Loading…

↗
2
6E5485380000
Clamp, cable
Loading…

↗
3
916903001200
Pin, spring
Loading…

↗
4
973130802000
Bolt(6td)
Loading…

↗
5
929030810000
Ybs67-8 washer, spring
Loading…

↗
6
61H416320294
Lever, Magneto Control
Loading…

↗
7
6E5483440000
Cable end, remote control
Loading…

↗
8
929030620000
Ybs66-6 washer, plain
Loading…

↗
9
901850606200
Nut selflocking (656)
Loading…

↗
11
973130804500
Bolt
Loading…

↗
12
9020108M5400
Washer, plate (6e5)
Loading…

↗
13
903861208900
Bushing(663)
Loading…

↗
14
9038708M1600
Collar
Loading…

↗
15
9038622M1300
Bushing (688)
Loading…

↗
16
9020108M1300
Washer plate (682)
Loading…

↗
17
9050829M1200
Spring (6e5)
Loading…

↗
18
6G5412110100
Link, accel
Loading…

↗
19
953800560000
Nut, hexagon (663)
Loading…

↗
20
662412370100
Joint, link
Loading…

↗
22
9038706M2900
Coller (6a0)
Loading…

↗
23
9020610M0400
Washer, wave (676)
Loading…

↗
24
973130602500
Bolt
Loading…

↗
25
6E5441170094
Bracket
Loading…

↗
26
973130602000
Bolt(7u8)
Loading…

↗
27
929030660000
Washer, plain (646)
Loading…

↗
28
6E5441210000
Lever, Shift Rod
Loading…

↗
29
6E5441220000
Bushing, shift rod lever
Loading…

↗
30
9020208M2000
Washer, plate (6e5)
Loading…

↗
31
904681800800
Clip 620436610000
Loading…

↗
32
9038606M1200
Bushing (688)
Loading…

↗
33
6E54411800EK
Bracket
Loading…

↗
34
973130803000
Bolt
Loading…

↗
35
929901010000
Ybs67-10 washer, spring
Loading…

↗
36
9350104M0200
Ball (697)
Loading…

↗
37
905011208200
Spring 6484411600
Loading…

↗
38
648427150000
Bushing 2
Loading…

↗
39
6E5441200100
Handle gear shift assembly
Loading…

↗
40
932100935000
O-ring
Loading…

↗
41
903861604600
Bush(6e5)
Loading…

↗
42
902021606100
Washer, plate(663)
Loading…

↗
43
934101600600
Circlip
Loading…

↗
