25DMH (1997)
Control

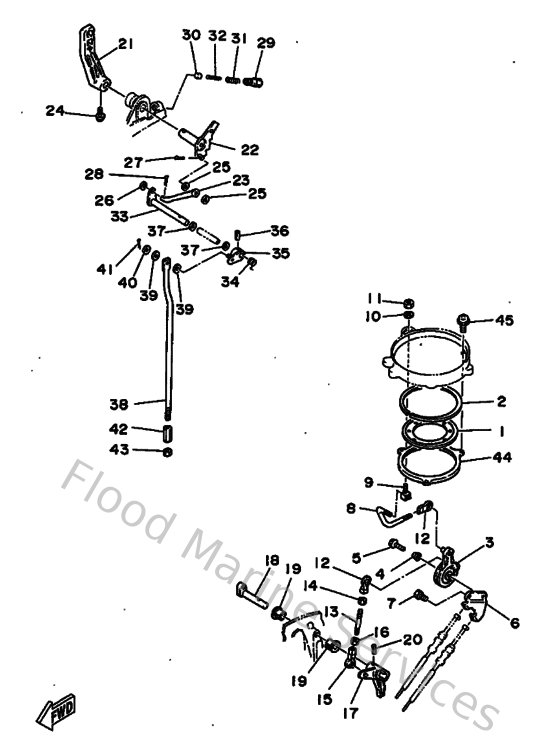

Diagram: Control
Parts List
Reference
Description
Price
1
695416120000
Retainer, Magneto Base
Loading…
↗
2
695416130000
Plate, base friction
Loading…
↗
3
664416310094
Lever, magneto control
Loading…
↗
4
9038706M0200
Collar (664)
Loading…
↗
5
9011906M4900
Bolt, with washer
Loading…
↗
6
664144970000
Stay Throttle Wire
Loading…
↗
7
973950601200
Bolt(gh1)
Loading…
↗
8
664416360000
Rod, Magneto Control
Loading…
↗
9
648416350000
Shaft, Link Connecting
Loading…
↗
10
902010555600
Washer plate (664)
Loading…
↗
11
953800560000
Nut, hexagon (663)
Loading…
↗
12
662412370100
Joint, link
Loading…
↗
13
901160522000
Bolt, Stud
Loading…
↗
15
6H1412370000
Joint, link
Loading…
↗
17
695421540000
Lever, throttle control
Loading…
↗
18
656421530000
Shaft, throttle control
Loading…
↗
19
903861000900
Bushing 6484418600
Loading…
↗
20
916904001800
Pin spring(664)
Loading…
↗
21
68944111018D
Handle, gear shift
Loading…
↗
22
664441130100
Cam plate, handle
Loading…
↗
23
664441420000
Joint
Loading…
↗
24
9010506M0700
Bolt (689)
Loading…
↗
25
902020600700
Washer plate 626441880000
Loading…
↗
26
929900560000
Washer, plain (646)
Loading…
↗
27
914901601000
Pin, cotter
Loading…
↗
28
914901201000
Pin, cotter (6g8)
Loading…
↗
29
664427150000
Bushing 2
Loading…
↗
30
664441670000
Plunger, shift cam
Loading…
↗
31
9050114M0700
Spring, compresion (664)
Loading…
↗
32
9050109M0800
Spring, compresion (664)
Loading…
↗
33
689441210100
Lever, shift rod 1
Loading…
↗
34
9050814M1300
Spring (689)
Loading…
↗
35
689441250000
Lever, shift rod 2
Loading…
↗
36
916904001600
Pin, spring (648)
Loading…
↗
37
902021002400
Washer plate 648441880000
Loading…
↗
38
6G0441430000
Rod, shift
Loading…
↗
41
914902001000
Pin, cotter
Loading…
↗
42
648441460000
Connector, shift rod 2
Loading…
↗
43
901700702100
Nut hexagon 648441280000
Loading…
↗
44
695416110094
Retainer, Magneto Base
Loading…
↗
45
979850521000
Screw, With Washer
Loading…
↗
