Yamaha Outboard Parts - Control - 25JETO (1987) | Flood Marine

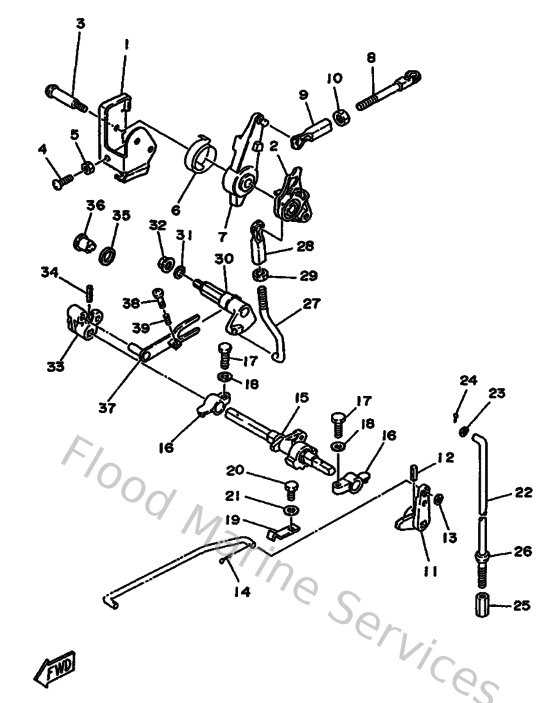

Diagram: Control

Diagram

Parts List

Reference
Description
Price


1
6J8144970000
Stay, throttle wire
Loading…

↗
2
6J8412130000
Cam, accel.
Loading…

↗
3
9010906M2800
Bolt(6j8)
Loading…

↗
4
978030602500
Screw, pan head(6b0)
Loading…

↗
5
953800660000
Nut(661)
Loading…

↗
6
6J8421670000
Spring 1
Loading…

↗
7
6J8416310100
Lever, magneto control
Loading…

↗
8
689421690100
Joint
Loading…

↗
10
953800560000
Nut, hexagon (663)
Loading…

↗
11
6J8441230000
Arm, shift rod
Loading…

↗
12
916903001800
926-51502-00 pin, spring (700)
Loading…

↗
13
929900620000
Ybs66-6 washer, plain
Loading…

↗
14
914902001500
Pin, cotter (648)
Loading…

↗
15
6J8441210100
Lever, shift rod
Loading…

↗
16
6G1416620194
Bracket
Loading…

↗
17
973130602000
Bolt(7u8)
Loading…

↗
18
929900660000
Washer, plain (646)
Loading…

↗
19
6G1441160100
Spring
Loading…

↗
20
973950601200
Bolt(gh1)
Loading…

↗
22
6J8441430000
Rod, shift
Loading…

↗
23
929900560000
Washer, plain (646)
Loading…

↗
24
914901601000
Pin, cotter
Loading…

↗
25
61N441460000
Connector, shift rod
Loading…

↗
26
689433730100
Seal, damper
Loading…

↗
27
6J8421920000
Rod 2
Loading…

↗
28
682412370000
Joint, link 2
Loading…

↗
30
6J8421540100
Lever, throttle control
Loading…

↗
31
902021002400
Washer plate 648441880000
Loading…

↗
32
957800830000
Nut, nylon (6j8)
Loading…

↗
33
6J8441420000
Joint
Loading…

↗
35
9020212M1700
Washer, plate (6e0)
Loading…

↗
37
6J8412110000
Link, accel.
Loading…

↗
38
978900402000
Screw, pan head (7h3)
Loading…

↗
39
6J8145550000
Spring
Loading…

↗
