25JETO (1996)
Control

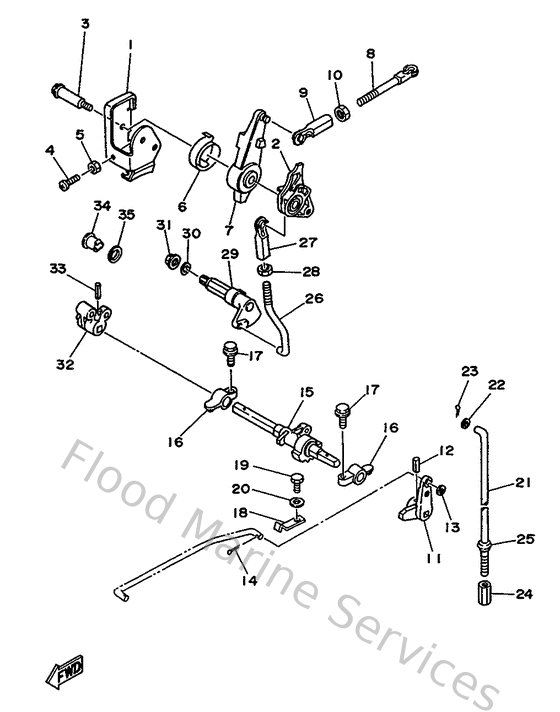

Diagram: Control
Parts List
Reference
Description
Price
1
6J8144970000
Stay, throttle wire
Loading…
↗
2
6J8412130000
Cam, accel.
Loading…
↗
6
6J8421670000
Spring 1
Loading…
↗
7
6J8416310200
Lever, magneto control
Loading…
↗
8
689421690100
Joint
Loading…
↗
9
682412370000
Joint, link 2
Loading…
↗
11
6J8441230000
Arm, shift rod
Loading…
↗
15
6J8441210000
Lever, shift rod
Loading…
↗
16
6G1416620194
Bracket
Loading…
↗
18
6J8441160000
Spring
Loading…
↗
21
6J8441430000
Rod, shift
Loading…
↗
25
689433730100
Seal, damper
Loading…
↗
26
6J8412370000
Joint, link
Loading…
↗
29
6J8421540100
Lever, throttle control
Loading…
↗
32
6J8441420000
Joint
Loading…
↗
34
682427260000
Grommet 3
Loading…
↗
