25NEMO (1988)
Control

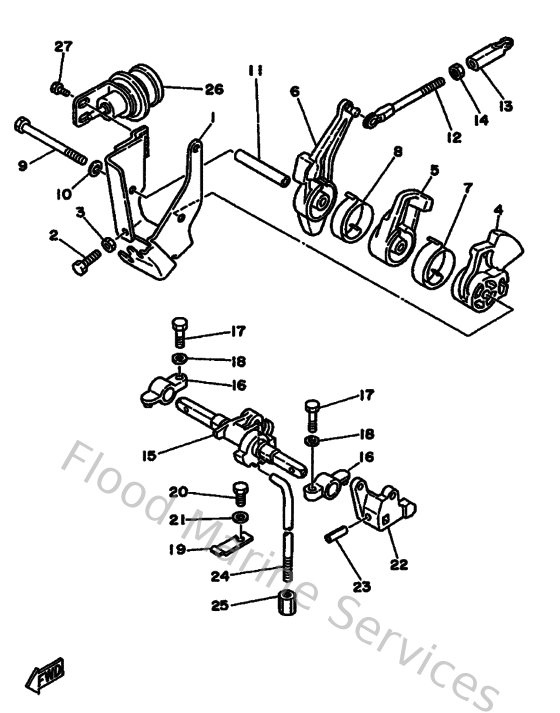

Diagram: Control
Parts List
Reference
Description
Price
1
6L2144970000
Stay, throttle wire
Loading…
↗
2
973130602000
Bolt(7u8)
Loading…
↗
3
953030670000
Nut
Loading…
↗
4
6L2412130000
Cam, accel.
Loading…
↗
5
6L2412830000
Lever, free accel.
Loading…
↗
7
6J8421670000
Spring 1
Loading…
↗
8
6L2421670000
Spring 1
Loading…
↗
10
929900660000
Washer, plain (646)
Loading…
↗
11
9038706M1800
Collar(6L2)
Loading…
↗
12
689421690100
Joint
Loading…
↗
13
6H1412370000
Joint, link
Loading…
↗
14
953030560000
Nut, hexagon (663)
Loading…
↗
15
6L2441210000
Lever, shift rod
Loading…
↗
16
6G1416620194
Bracket
Loading…
↗
19
6G1441160100
Spring
Loading…
↗
20
973950601200
Bolt(gh1)
Loading…
↗
22
6L2441230000
Arm, shift rod
Loading…
↗
23
9025403M0400
Pin, spring (6h3)
Loading…
↗
24
6L2441430000
Rod, shift
Loading…
↗
25
901700601500
Connector, shift rod
Loading…
↗
26
6L2143680000
Diaphragm assembly 1
Loading…
↗
27
973130600800
Bolt (fj1)
Loading…
↗
