25NMHO (1996)
Control

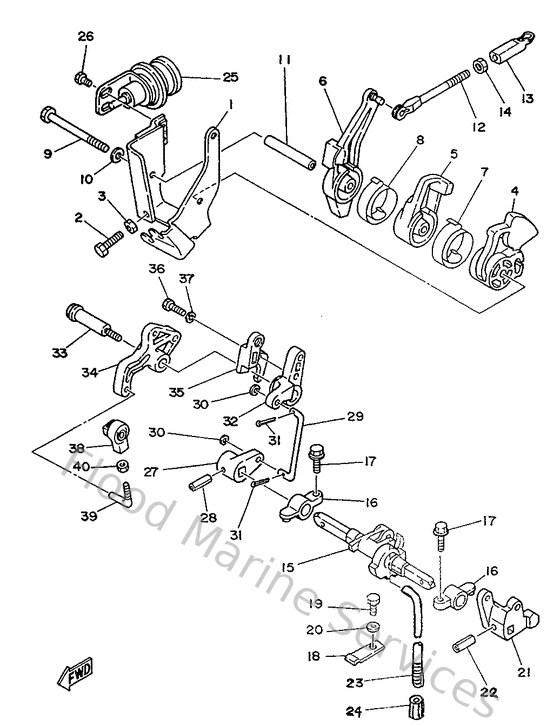

Diagram: Control
Parts List
Reference
Description
Price
1
6L2144970000
Stay, throttle wire
Loading…
↗
4
6L2412130000
Cam, accel.
Loading…
↗
5
6L2412830000
Lever, free accel.
Loading…
↗
6
6L2416310000
Lever, magneto control
Loading…
↗
7
6J8421670000
Spring 1
Loading…
↗
8
6L2421670000
Spring 1
Loading…
↗
12
689421690100
Joint
Loading…
↗
13
6H1412370000
Joint, link
Loading…
↗
15
6L2441210000
Lever, shift rod
Loading…
↗
16
6G1416620194
Bracket
Loading…
↗
18
6J8441160000
Spring
Loading…
↗
21
6L2441230000
Arm, shift rod
Loading…
↗
23
6L2441430000
Rod, shift
Loading…
↗
25
6L2143680000
Diaphragm assembly 1
Loading…
↗
27
6L2441220000
Bushing, shift rod lever
Loading…
↗
29
6L2421920000
Rod 2
Loading…
↗
32
6L2441410200
Link, shift rod
Loading…
↗
34
6L2412120000
Arm, accel.
Loading…
↗
35
6L2441411094
Link, shift rod
Loading…
↗
38
6L2412370000
Joint, link
Loading…
↗
39
6L2412380000
Joint, link
Loading…
↗
