Yamaha Outboard Parts - Control - 25VMH (1998) | Flood Marine

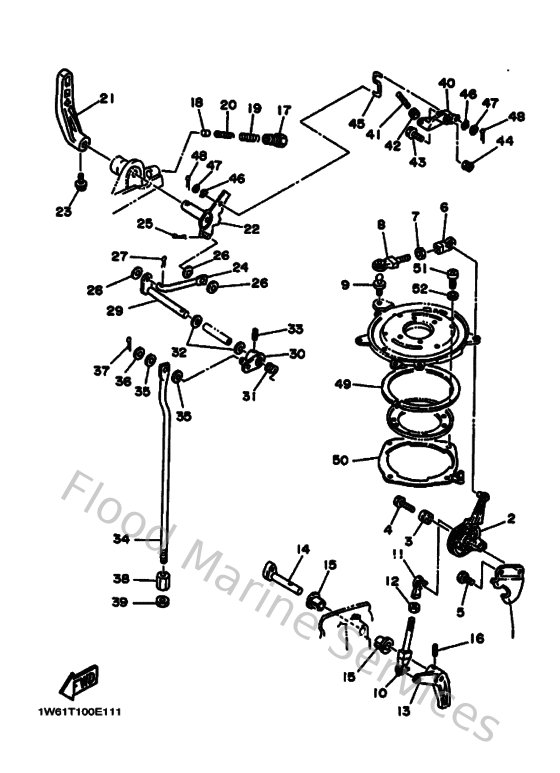

Diagram: Control

Diagram

Parts List

Reference
Description
Price


1
689144970000
Stay, throttle wire
Loading…

↗
2
61N416310094
Lever, magneto control
Loading…

↗
3
9038706M0200
Collar (664)
Loading…

↗
4
9011906M4900
Bolt, with washer
Loading…

↗
5
970950601200
Bolt(gh1)
Loading…

↗
6
6H1412370000
Joint, link
Loading…

↗
7
953800570000
Nut (656)
Loading…

↗
8
679412410100
Rod, link
Loading…

↗
9
663855180000
Joint, ball
Loading…

↗
10
689421690100
Joint
Loading…

↗
12
953800560000
Nut, hexagon (663)
Loading…

↗
13
689421548094
Lever, throttle control
Loading…

↗
14
656421530094
Shaft, throttle control
Loading…

↗
15
903861000900
Bushing 6484418600
Loading…

↗
16
916904001800
Pin spring(664)
Loading…

↗
17
664427150000
Bushing 2
Loading…

↗
18
664441670000
Plunger, shift cam
Loading…

↗
19
9050114M0700
Spring, compresion (664)
Loading…

↗
20
9050109M0800
Spring, compresion (664)
Loading…

↗
21
68944111014D
Handle, gear shift
Loading…

↗
22
664441130100
Cam plate, handle
Loading…

↗
23
9010506M0700
Bolt (689)
Loading…

↗
24
664441420000
Joint
Loading…

↗
25
914901601000
Pin, cotter
Loading…

↗
26
902020600700
Washer plate 626441880000
Loading…

↗
27
914901201200
Pin, cotter (6g8)
Loading…

↗
28
929900560000
Washer, plain (646)
Loading…

↗
29
689441210100
Lever, shift rod 1
Loading…

↗
30
689441250000
Lever, shift rod 2
Loading…

↗
31
9050814M1300
Spring (689)
Loading…

↗
32
902021002400
Washer plate 648441880000
Loading…

↗
33
916904001600
Pin, spring (648)
Loading…

↗
34
69S441430000
Rod, shift
Loading…

↗
37
914902001000
Pin, cotter
Loading…

↗
38
61N441460000
Connector, shift rod
Loading…

↗
39
953800660000
Nut(661)
Loading…

↗
40
689157467094
1078 Arm
Loading…

↗
41
9011305M0400
Bolt, Set
Loading…

↗
43
9011906M5000
Bolt, with washer(61r)
Loading…

↗
45
689157477000
Link
Loading…

↗
46
902060500500
Washer, wave(656)
Loading…

↗
49
676416110000
Retainer, magneto base 1
Loading…

↗
50
676416130000
Plate, base friction
Loading…

↗
51
985800501200
Screw,pan head (646)
Loading…

↗
