Yamaha Outboard Parts - Control - 30AMH (1992) | Flood Marine

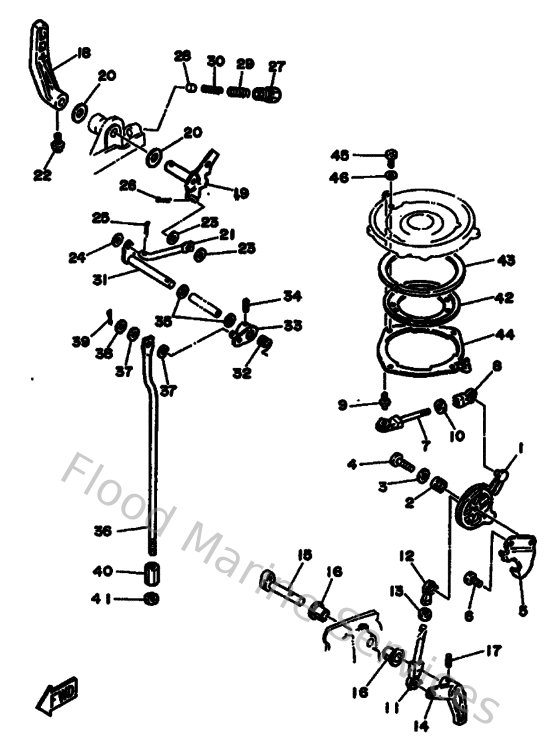

Diagram: Control

Diagram

Parts List

Reference
Description
Price


2
9038706M0200
Collar (664)
Loading…

↗
4
973130602500
Bolt
Loading…

↗
5
689144970000
Stay, throttle wire
Loading…

↗
6
970800601200
Bolt(gh1)
Loading…

↗
7
689416360100
Rod, Mag.controlcontrol
Loading…

↗
8
6H1412370000
Joint, link
Loading…

↗
9
663855180000
Joint, ball
Loading…

↗
10
953800560000
Nut, hexagon (663)
Loading…

↗
11
689421690100
Joint
Loading…

↗
14
689421548094
Lever, throttle control
Loading…

↗
15
656421530094
Shaft, throttle control
Loading…

↗
16
903861000900
Bushing 6484418600
Loading…

↗
17
916904001800
Pin spring(664)
Loading…

↗
19
664441130100
Cam plate, handle
Loading…

↗
20
902021203100
Washer, plate 6484412600
Loading…

↗
21
664441420000
Joint
Loading…

↗
22
9010506M0700
Bolt (689)
Loading…

↗
23
902020600700
Washer plate 626441880000
Loading…

↗
24
929900560000
Washer, plain (646)
Loading…

↗
25
914901601000
Pin, cotter
Loading…

↗
26
914901201000
Pin, cotter (6g8)
Loading…

↗
27
664427150000
Bushing 2
Loading…

↗
28
664441670000
Plunger, shift cam
Loading…

↗
29
9050114M0700
Spring, compresion (664)
Loading…

↗
30
9050109M0800
Spring, compresion (664)
Loading…

↗
31
689441210100
Lever, shift rod 1
Loading…

↗
32
9050814M1300
Spring (689)
Loading…

↗
33
689441250000
Lever, shift rod 2
Loading…

↗
34
916904001600
Pin, spring (648)
Loading…

↗
35
902021002400
Washer plate 648441880000
Loading…

↗
36
6G0441430000
Rod, shift
Loading…

↗
39
914902001000
Pin, cotter
Loading…

↗
40
648441460000
Connector, shift rod 2
Loading…

↗
41
901700702100
Nut hexagon 648441280000
Loading…

↗
42
689416120100
Retainer, magneto base
Loading…

↗
43
676416110000
Retainer, magneto base 1
Loading…

↗
44
676416130000
Plate, base friction
Loading…

↗
45
985800501200
Screw,pan head (646)
Loading…

↗
