Yamaha Outboard Parts - Control - 3AMH (1989) | Flood Marine

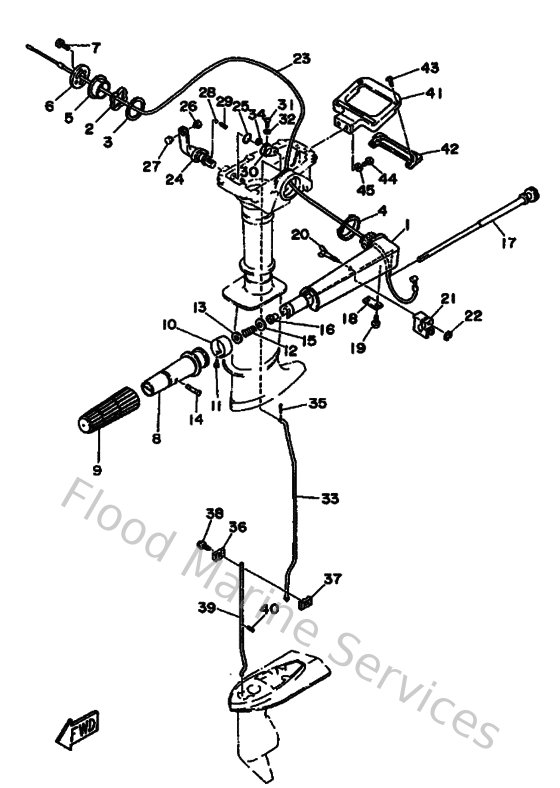

Diagram: Control

Diagram

Parts List

Reference
Description
Price


2
9020635M1100
Washer, wave(6j8)
Loading…

↗
3
9020235M2400
Washer (6g1)
Loading…

↗
4
9038643M7900
Bush(6l5)
Loading…

↗
5
9038634M4000
Bushing (6g1)
Loading…

↗
6
6G1421310100
Cover, handle steering
Loading…

↗
7
970950601600
Bolt, hexagon deep recess
Loading…

↗
8
664421190000
Grip, steering handle
Loading…

↗
9
6G1421770000
Rubber, handle
Loading…

↗
10
6L5421370000
Indicator, throttle
Loading…

↗
11
902690200100
Rivet(6l5)
Loading…

↗
12
905012321500
Spring (655)
Loading…

↗
13
929901060000
Washer, plate
Loading…

↗
14
9014905M0600
Screw, countersunk
Loading…

↗
15
9020908M1700
Washer(6l5)
Loading…

↗
16
903860803200
Bushing (650)
Loading…

↗
17
6G1421380100
Lever, throttle
Loading…

↗
18
6E0421590200
Stay
Loading…

↗
19
985800501200
Screw,pan head (646)
Loading…

↗
20
6L5421250000
Bolt, friction adjusting
Loading…

↗
21
6G1421260000
Piece, friction
Loading…

↗
22
990800360000
Circlip(6l5)
Loading…

↗
23
6GEF63010000
Throttle cable assembly
Loading…

↗
24
6L5441110000
Handle, gear shift
Loading…

↗
25
932101232700
O-ring(3ld)
Loading…

↗
26
6L5441962000
Indicator 3
Loading…

↗
27
6L5441972000
Indicator 4
Loading…

↗
28
935051602400
Ball
Loading…

↗
29
905011227400
Spring 6554411600
Loading…

↗
30
6L5441210000
Lever, shift rod
Loading…

↗
31
977804052000
Ybs83-420 screw,panh,tapping
Loading…

↗
32
929900460000
Washer, plain (646)
Loading…

↗
33
6L5441430000
Rod, shift
Loading…

↗
34
929900560000
Washer, plain (646)
Loading…

↗
35
914901601000
Pin, cotter
Loading…

↗
36
6E0441450000
Connector, shift rod 1
Loading…

↗
37
6E0441460000
Connector, shift rod 2
Loading…

↗
39
6L5441441000
Rod, shift
Loading…

↗
40
916092501400
Pin, Spring
Loading…

↗
42
6L5427352000
Protector
Loading…

↗
43
9016104M0200
Screw, tapping (676)
Loading…

↗
44
973950602000
Bolt(7u8)
Loading…

↗
45
929900660000
Washer, plain (646)
Loading…

↗
