40VMO (1997)
Control

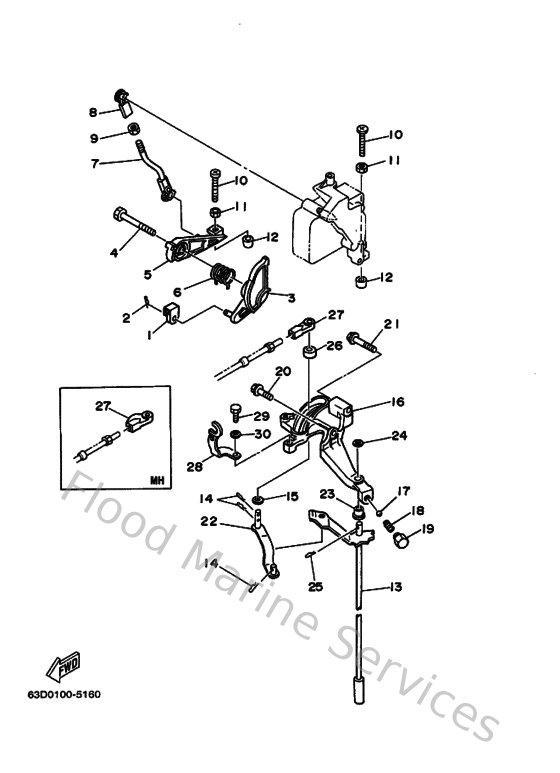

Diagram: Control
Parts List
Reference
Description
Price
1
6H4483440000
Cable end, remote control
Loading…
↗
2
904681800800
Clip 620436610000
Loading…
↗
3
63D412130000
Cam, accel.
Loading…
↗
4
9010906M4300
Bolt(6h4)
Loading…
↗
5
63D416320000
Lever, magneto control
Loading…
↗
6
9050826M3500
Spring, torsion
Loading…
↗
7
63D416360000
Rod, magneto control
Loading…
↗
8
6H4412370000
Joint, link
Loading…
↗
9
953800560000
Nut, hexagon (663)
Loading…
↗
10
9015706M1300
Screw, pan head(6h4)
Loading…
↗
11
953800660000
Nut(661)
Loading…
↗
12
688441940000
Cap
Loading…
↗
13
63D441201000
Handle gear shift assembly
Loading…
↗
15
9020207M0700
Washer, plate (688)
Loading…
↗
16
63D441170000
Bracket
Loading…
↗
17
9350104M0200
Ball (697)
Loading…
↗
18
905011208200
Spring 6484411600
Loading…
↗
19
648427150000
Bushing 2
Loading…
↗
20
975950652000
Bolt(7u8)
Loading…
↗
22
63D441210000
Lever, shift rod
Loading…
↗
23
9038607M5800
Bush(6h1)
Loading…
↗
24
929900820000
Ybs66-8 washer, plain
Loading…
↗
25
914902001500
Pin, cotter (648)
Loading…
↗
26
688441220000
Bushing, shift rod lever
Loading…
↗
27
663483440000
Cable end, remote control
Loading…
↗
28
63D157740000
Stay 4
Loading…
↗
29
970950601600
Bolt, hexagon deep recess
Loading…
↗
30
929900660000
Washer, plain (646)
Loading…
↗
