4ACMH (1990)
Control

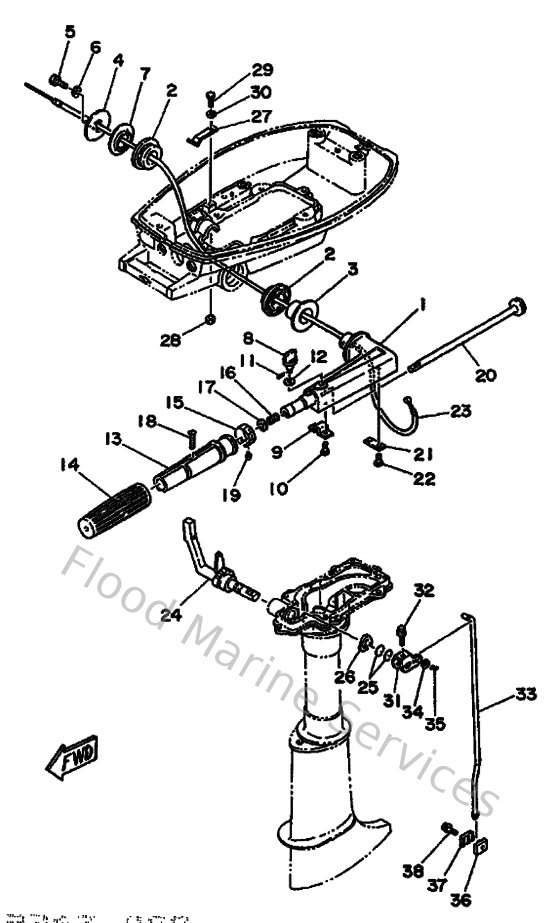

Diagram: Control
Parts List
Reference
Description
Price
1
6E04211101EJ
Handle, Steering
Loading…
↗
2
6E0421290200
Bushing, rubber
Loading…
↗
3
9038626M3000
Bushing (6e0)
Loading…
↗
4
6E0421310294
Cover, handle steering
Loading…
↗
5
970130502000
Bolt, hexagon
Loading…
↗
6
929900560000
Washer, plain (646)
Loading…
↗
7
9038626M3300
Bushing (6e0)
Loading…
↗
8
6E0421250000
Bolt, friction adjust
Loading…
↗
9
6E0421340200
Cover, throttle lever
Loading…
↗
10
978850501200
Screw,pan head (646)
Loading…
↗
11
914901201000
Pin, cotter (6g8)
Loading…
↗
12
9020207M2200
Washer (6e0)
Loading…
↗
13
6E0421190000
Grip, steering handle
Loading…
↗
14
6E0421770000
Rubber, handle
Loading…
↗
15
6E0421371000
Indicator, throttle
Loading…
↗
16
905012321500
Spring (655)
Loading…
↗
17
902011011900
Washer, plain(735)
Loading…
↗
18
9014905M0600
Screw, countersunk
Loading…
↗
19
9026902M0900
Rivet(6l5)
Loading…
↗
20
6E0421380100
Lever, throttle
Loading…
↗
21
6E0421590200
Stay
Loading…
↗
22
978950501200
Screw,pan head (646)
Loading…
↗
23
6E0263010100
Throttle wire assembly
Loading…
↗
24
6E0441110100
Handle, gear shift
Loading…
↗
25
932101279000
O-ring(3ld)
Loading…
↗
26
9020616M0600
Washer, wave (6e0)
Loading…
↗
27
6E0441160000
Spring
Loading…
↗
28
953800670000
Nut
Loading…
↗
29
970800601200
Bolt(gh1)
Loading…
↗
30
929900660000
Washer, plain (646)
Loading…
↗
31
6E0441210000
Lever, shift rod 1
Loading…
↗
32
958950602500
Bolt, flange deep recess
Loading…
↗
33
6E0441430000
Rod, shift 1
Loading…
↗
35
914901601000
Pin, cotter
Loading…
↗
36
6E0441450000
Connector, shift rod 1
Loading…
↗
37
6E0441460000
Connector, shift rod 2
Loading…
↗
38
958950602000
Bolt, flange(jk3)
Loading…
↗
