Yamaha Outboard Parts - Control - 5CMH (1985) | Flood Marine

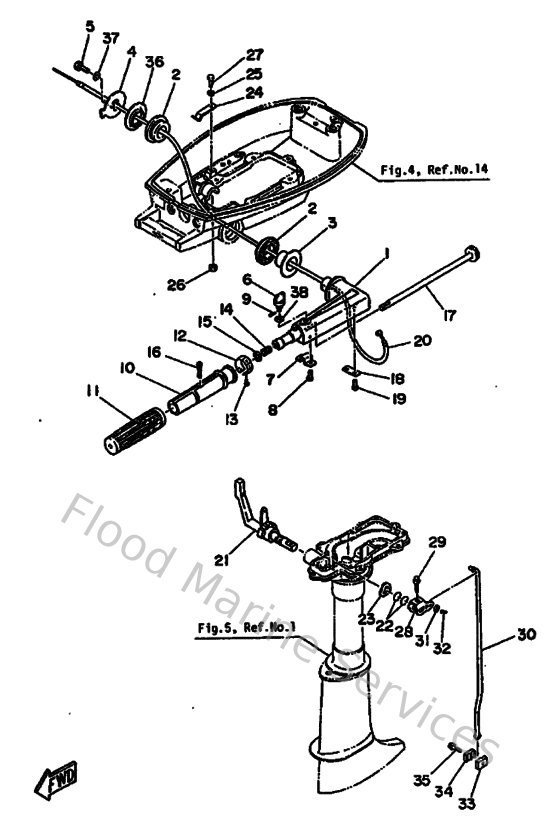

Diagram: Control

Diagram

Parts List

Reference
Description
Price


2
6E0421290100
Bushing, rubber
Loading…

↗
3
9038626M3000
Bushing (6e0)
Loading…

↗
6
6E0421250000
Bolt, friction adjust
Loading…

↗
7
6E0421340000
Cover, throttle lever
Loading…

↗
8
985800501200
Screw,pan head (646)
Loading…

↗
9
914901200800
Pin, cotter (6g8)
Loading…

↗
10
6E0421190000
Grip, steering handle
Loading…

↗
11
6E0421170000
Rubber, handle
Loading…

↗
12
6E0421371000
Indicator, throttle
Loading…

↗
13
902690200100
Rivet(6l5)
Loading…

↗
14
905012321500
Spring (655)
Loading…

↗
15
902011011900
Washer, plain(735)
Loading…

↗
16
986800552500
Ybs53-525 screw,flat head
Loading…

↗
17
6E0421380100
Lever, throttle
Loading…

↗
18
6E0421590000
Stay
Loading…

↗
20
6E0263010100
Throttle wire assembly
Loading…

↗
21
6E0441110100
Handle, gear shift
Loading…

↗
22
932101232700
O-ring(3ld)
Loading…

↗
23
9020616M0600
Washer, wave (6e0)
Loading…

↗
24
6E0441160000
Spring
Loading…

↗
25
929030660000
Washer, plain (646)
Loading…

↗
26
953800670000
Nut
Loading…

↗
27
973950601200
Bolt(gh1)
Loading…

↗
28
6E0441210000
Lever, shift rod 1
Loading…

↗
29
958950602500
Bolt, flange deep recess
Loading…

↗
30
6E0441430000
Rod, shift 1
Loading…

↗
31
929900560000
Washer, plain (646)
Loading…

↗
32
914901601000
Pin, cotter
Loading…

↗
33
6E0441450000
Connector, shift rod 1
Loading…

↗
34
6E0441460000
Connector, shift rod 2
Loading…

↗
35
958950602000
Bolt, flange(jk3)
Loading…

↗
36
9038626M3300
Bushing (6e0)
Loading…

↗
37
929030560000
Washer, plain (646)
Loading…

↗
38
9020207M2200
Washer (6e0)
Loading…

↗
