Yamaha Outboard Parts - Control - 5CMH (1994) | Flood Marine

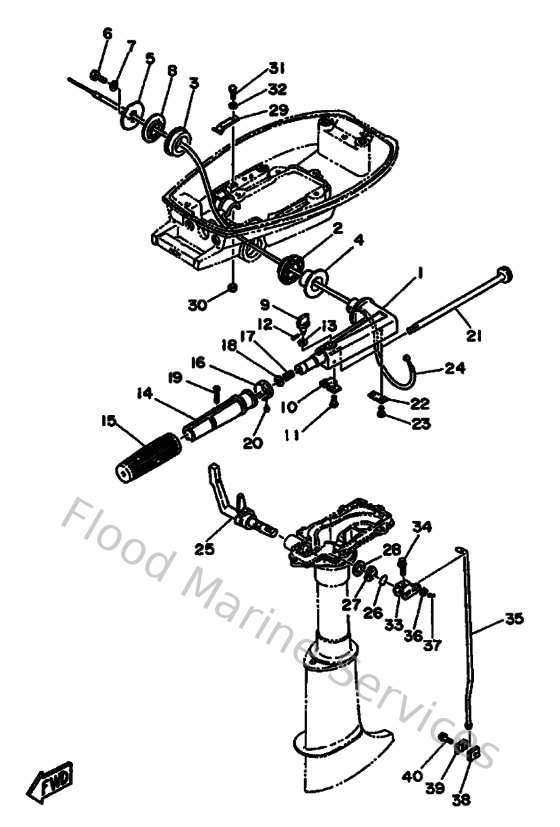

Diagram: Control

Diagram

Parts List

Reference
Description
Price


1
6E042111024D
Handle, steering
Loading…

↗
2
6E0421290200
Bushing, rubber
Loading…

↗
3
6E4421290000
Bushing, rubber
Loading…

↗
4
9038626M3000
Bushing (6e0)
Loading…

↗
5
6E0421310294
Cover, handle steering
Loading…

↗
6
970130502000
Bolt, hexagon
Loading…

↗
7
929900560000
Washer, plain (646)
Loading…

↗
8
9038626M3300
Bushing (6e0)
Loading…

↗
9
6E0421250000
Bolt, friction adjust
Loading…

↗
10
6E0421340200
Cover, throttle lever
Loading…

↗
11
978850501200
Screw,pan head (646)
Loading…

↗
12
914901201200
Pin, cotter (6g8)
Loading…

↗
13
9020207M2200
Washer (6e0)
Loading…

↗
14
6E0421190000
Grip, steering handle
Loading…

↗
15
6E0421770000
Rubber, handle
Loading…

↗
16
6E0421371000
Indicator, throttle
Loading…

↗
17
905012321500
Spring (655)
Loading…

↗
18
902011011900
Washer, plain(735)
Loading…

↗
19
9014905M1300
Screw, countersunk
Loading…

↗
20
9026902M0900
Rivet(6l5)
Loading…

↗
21
6E0421380100
Lever, throttle
Loading…

↗
22
6E0421590200
Stay
Loading…

↗
23
978950501200
Screw,pan head (646)
Loading…

↗
24
6E0263010100
Throttle wire assembly
Loading…

↗
25
6E0441110200
Handle, gear shift
Loading…

↗
26
932101279000
O-ring(3ld)
Loading…

↗
27
9020616M0600
Washer, wave (6e0)
Loading…

↗
29
6E0441160000
Spring
Loading…

↗
30
953800670000
Nut
Loading…

↗
31
970800601200
Bolt(gh1)
Loading…

↗
32
929900660000
Washer, plain (646)
Loading…

↗
33
6E0441210000
Lever, shift rod 1
Loading…

↗
34
958950602500
Bolt, flange deep recess
Loading…

↗
35
6E0441430000
Rod, shift 1
Loading…

↗
37
914901601000
Pin, cotter
Loading…

↗
38
6E0441450000
Connector, shift rod 1
Loading…

↗
39
6E0441460000
Connector, shift rod 2
Loading…

↗
40
958950602000
Bolt, flange(jk3)
Loading…

↗
