60FETO (1990)
Control

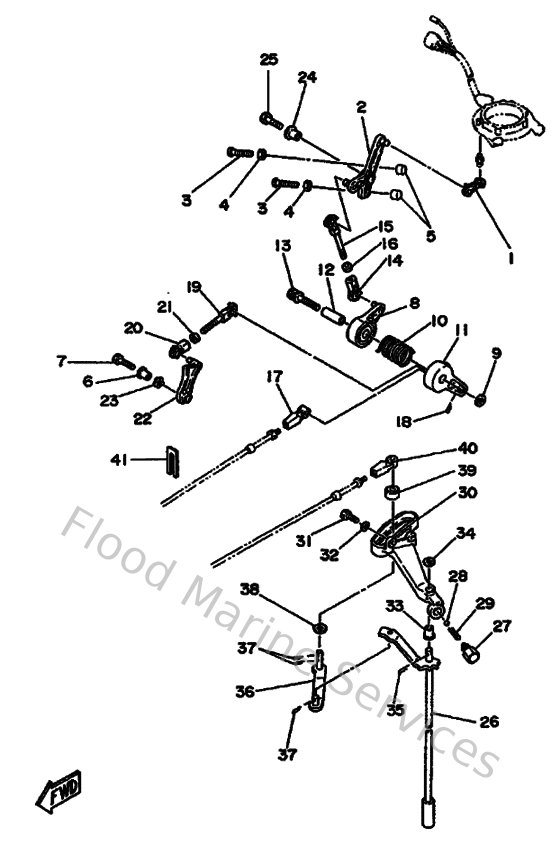

Diagram: Control
Parts List
Reference
Description
Price
1
6H3412380000
Joint, link 1
Loading…
↗
2
6H3416310000
Lever, magneto control 1
Loading…
↗
3
9015706M0000
Screw, pan head(6h4)
Loading…
↗
4
953030660000
Nut(661)
Loading…
↗
5
688441940000
Cap
Loading…
↗
6
9038706M6000
Collar (6h3)
Loading…
↗
7
973130602500
Bolt
Loading…
↗
8
6H3416320000
Lever, magneto control 2
Loading…
↗
9
9020106M3100
Washer (6a0)
Loading…
↗
10
905082905100
Spring, torsion
Loading…
↗
11
6H3416330000
Lever, magneto control 3
Loading…
↗
12
9038706M5900
Collar (6h3)
Loading…
↗
14
6H1412370000
Joint, link
Loading…
↗
15
679416360000
Rod, magneto control
Loading…
↗
16
953800560000
Nut, hexagon (663)
Loading…
↗
17
6FM483440000
Cable end, remote control
Loading…
↗
18
904681800800
Clip 620436610000
Loading…
↗
19
682412375000
Joint, link 2
Loading…
↗
22
6H3412130100
Cam, accele
Loading…
↗
23
9020610M0400
Washer, wave (676)
Loading…
↗
25
973950602500
Bolt
Loading…
↗
26
6H3441201300
Handle gear shift assembly
Loading…
↗
27
648427150000
Bushing 2
Loading…
↗
28
9350104M0200
Ball (697)
Loading…
↗
29
905011208200
Spring 6484411600
Loading…
↗
30
6H3441170094
Bracket 1
Loading…
↗
31
970800602000
Bolt(7u8)
Loading…
↗
32
929900660000
Washer, plain (646)
Loading…
↗
33
9038607M5800
Bush(6h1)
Loading…
↗
34
929900820000
Ybs66-8 washer, plain
Loading…
↗
35
914902001500
Pin, cotter (648)
Loading…
↗
36
6H3441210100
Lever, shift rod
Loading…
↗
38
9020207M0700
Washer, plate (688)
Loading…
↗
39
688441220000
Bushing, shift rod lever
Loading…
↗
40
663483440000
Cable end, remote control
Loading…
↗
41
6H3485380000
Clamp, cable
Loading…
↗
