Yamaha Outboard Parts - Control - 6CEM (1986) | Flood Marine

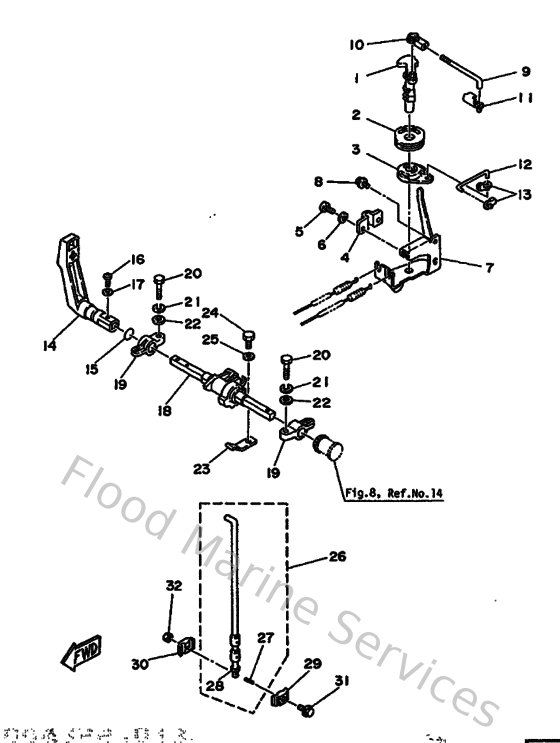

Diagram: Control

Diagram

Parts List

Reference
Description
Price


1
6G1416310000
Lever, magneto control
Loading…

↗
2
6G1416380000
Pulley
Loading…

↗
3
6G1412830100
Lever, free accel 1
Loading…

↗
4
6G1416610000
Bracket 1
Loading…

↗
5
978030501000
Screw, pan head(62x)
Loading…

↗
6
929900560000
Washer, plain (646)
Loading…

↗
7
6G1144978000
Stay, throttle wire
Loading…

↗
8
9010506M2300
Bolt (6g1)
Loading…

↗
9
6G1412380000
Joint, link
Loading…

↗
10
6H1412370000
Joint, link
Loading…

↗
11
6E9412370000
Joint, link
Loading…

↗
12
6G1412110000
Link, accel
Loading…

↗
13
661412620200
Joint, choke lever
Loading…

↗
14
6GH441110000
Handle, gear shift
Loading…

↗
15
932101232700
O-ring(3ld)
Loading…

↗
16
978030501600
Screw, pan head(6b0)
Loading…

↗
18
6G1441210100
Lever, shift rod
Loading…

↗
19
6G1416620000
Bracket 2
Loading…

↗
20
970130601800
Bolt, hexagon
Loading…

↗
21
929900610000
Washer(6a1)
Loading…

↗
22
929900620000
Ybs66-6 washer, plain
Loading…

↗
23
6G1441160100
Spring
Loading…

↗
24
970800601200
Bolt(gh1)
Loading…

↗
25
929900660000
Washer, plain (646)
Loading…

↗
26
6G1441100000
Shift rod assembly
Loading…

↗
27
916902001000
Pin, spring
Loading…

↗
29
6N0G41451000
Connecter 1
Loading…

↗
30
6G1441460000
Connecter 2
Loading…

↗
31
9010906M1700
Bolt (6g1)
Loading…

↗
32
953800660000
Nut(661)
Loading…

↗
