6DEM (1990)
Control

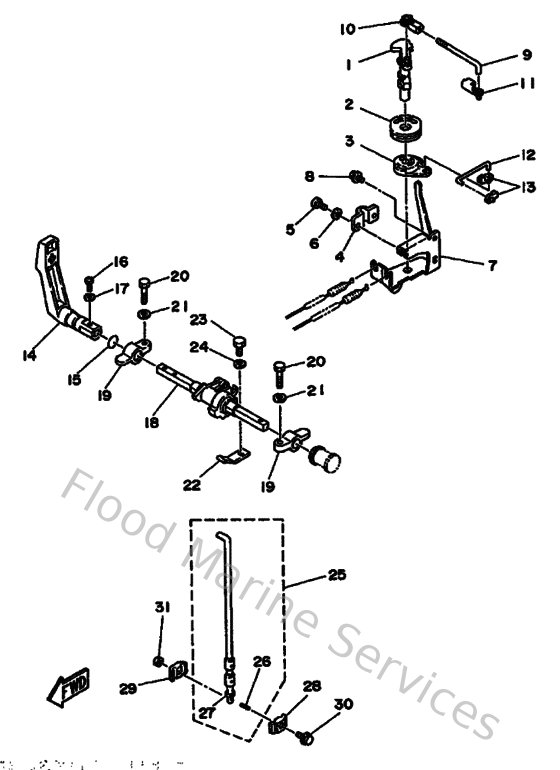

Diagram: Control
Parts List
Reference
Description
Price
1
6G1416310000
Lever, magneto control
Loading…
↗
2
6G1416380000
Pulley
Loading…
↗
3
6G1412830100
Lever, free accel 1
Loading…
↗
4
6G1416610000
Bracket 1
Loading…
↗
5
978850501000
Screw, pan head(62x)
Loading…
↗
6
929900510000
Ybs67-5 washer, spring
Loading…
↗
7
6G1144978000
Stay, throttle wire
Loading…
↗
8
9010506M2300
Bolt (6g1)
Loading…
↗
9
6G1412380000
Joint, link
Loading…
↗
10
6H1412370000
Joint, link
Loading…
↗
11
6E9412370000
Joint, link
Loading…
↗
12
6G1412110000
Link, accel
Loading…
↗
13
661412620200
Joint, choke lever
Loading…
↗
14
6GH441110000
Handle, gear shift
Loading…
↗
15
932101232700
O-ring(3ld)
Loading…
↗
16
978850501600
Screw, pan head(6b0)
Loading…
↗
17
929900560000
Washer, plain (646)
Loading…
↗
18
6G1441210100
Lever, shift rod
Loading…
↗
19
6G1416620194
Bracket
Loading…
↗
20
970800602000
Bolt(7u8)
Loading…
↗
21
929900660000
Washer, plain (646)
Loading…
↗
22
6G1441160100
Spring
Loading…
↗
23
973950601200
Bolt(gh1)
Loading…
↗
25
6G1441100000
Shift rod assembly
Loading…
↗
26
916902001000
Pin, spring
Loading…
↗
28
6N0G41451000
Connecter 1
Loading…
↗
29
6G1441460000
Connecter 2
Loading…
↗
30
9010906M1700
Bolt (6g1)
Loading…
↗
31
953800660000
Nut(661)
Loading…
↗
