6DEM (1996)
Control

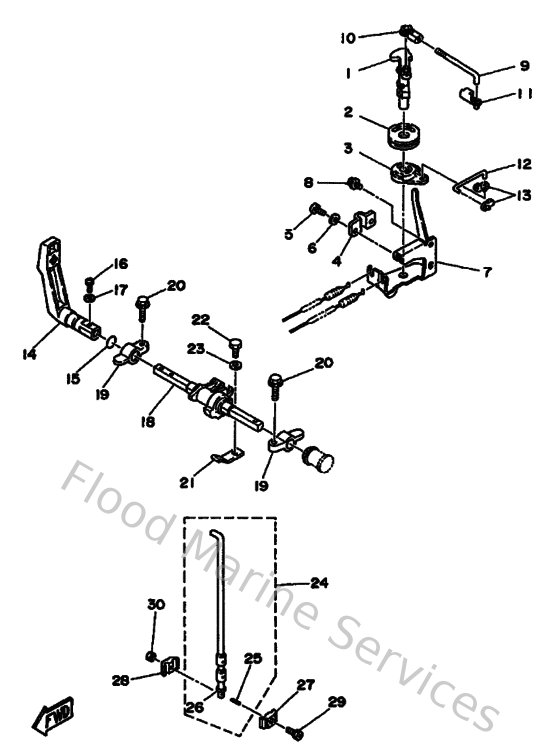

Diagram: Control
Parts List
Reference
Description
Price
1
6G1416310000
Lever, magneto control
Loading…
↗
2
6G1416380000
Pulley
Loading…
↗
3
6G1412830100
Lever, free accel 1
Loading…
↗
4
6G1416610000
Bracket 1
Loading…
↗
5
985800501000
Screw, pan head(62x)
Loading…
↗
7
6G1144978000
Stay, throttle wire
Loading…
↗
8
958800601000
Bolt, flange(7ht)
Loading…
↗
9
6G1412380000
Joint, link
Loading…
↗
10
6H1412370000
Joint, link
Loading…
↗
11
6R5412370000
Joint, link
Loading…
↗
12
6G1412110000
Link, accel
Loading…
↗
13
661412620200
Joint, choke lever
Loading…
↗
14
6G1441110000
Handle, gear shift
Loading…
↗
15
932101279000
O-ring(3ld)
Loading…
↗
16
978850501600
Screw, pan head(6b0)
Loading…
↗
17
929900560000
Washer, plain (646)
Loading…
↗
19
6G1416620194
Bracket
Loading…
↗
20
975950652000
Bolt(7u8)
Loading…
↗
21
6G1441160100
Spring
Loading…
↗
22
970950601200
Bolt(gh1)
Loading…
↗
23
929900660000
Washer, plain (646)
Loading…
↗
24
6N0G41100000
Shift rod assembly
Loading…
↗
25
916902001000
Pin, spring
Loading…
↗
27
6G1441450000
Connector, shift rod 1
Loading…
↗
28
6G1441460000
Connecter 2
Loading…
↗
29
9010906M1700
Bolt (6g1)
Loading…
↗
30
953800660000
Nut(661)
Loading…
↗
