Yamaha Outboard Parts - Control - 70BETO (1996) | Flood Marine

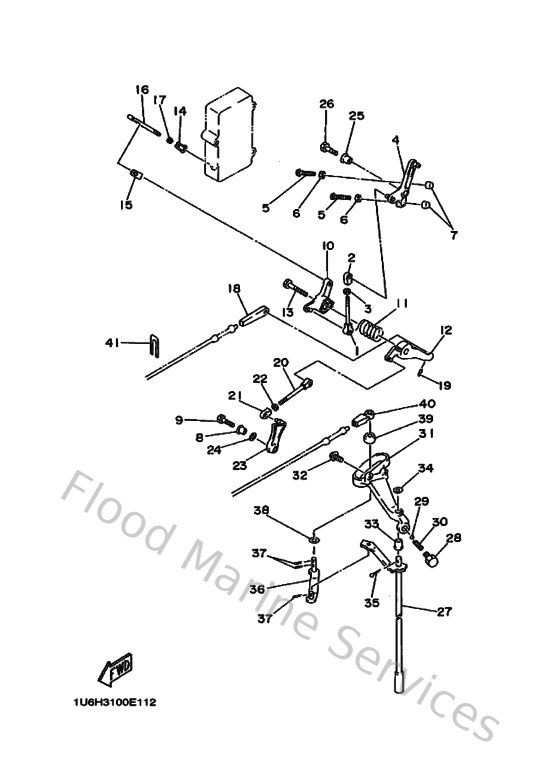

Diagram: Control

Diagram

Parts List

Reference
Description
Price


1
689421690100
Joint
Loading…

↗
2
682412370000
Joint, link 2
Loading…

↗
3
953800560000
Nut, hexagon (663)
Loading…

↗
4
6H3416310000
Lever, magneto control 1
Loading…

↗
5
9015706M1300
Screw, pan head(6h4)
Loading…

↗
6
953800660000
Nut(661)
Loading…

↗
7
688441940000
Cap
Loading…

↗
8
9038706M6000
Collar (6h3)
Loading…

↗
9
970950602500
Bolt
Loading…

↗
10
6H3416322000
Lever, magneto control
Loading…

↗
11
905082611700
Spring, torsion
Loading…

↗
12
6H3416331000
Lever, magneto control
Loading…

↗
13
9010906M4300
Bolt(6h4)
Loading…

↗
14
6H1412370000
Joint, link
Loading…

↗
15
6F5412370000
Joint, link
Loading…

↗
16
6H3416361000
Rod, Magneto Control
Loading…

↗
18
6H3483440000
Cable end, remote control
Loading…

↗
19
904681800800
Clip 620436610000
Loading…

↗
21
6H4412370000
Joint, link
Loading…

↗
23
6H3412131000
Cam, accel.
Loading…

↗
24
9020610M0400
Washer, wave (676)
Loading…

↗
27
6H3441201300
Handle gear shift assembly
Loading…

↗
28
648427150000
Bushing 2
Loading…

↗
29
9350104M0200
Ball (697)
Loading…

↗
30
905011208200
Spring 6484411600
Loading…

↗
31
6H3441170094
Bracket 1
Loading…

↗
32
970800602000
Bolt(7u8)
Loading…

↗
33
9038607M5800
Bush(6h1)
Loading…

↗
34
929900820000
Ybs66-8 washer, plain
Loading…

↗
35
914902001500
Pin, cotter (648)
Loading…

↗
36
6H3441210100
Lever, shift rod
Loading…

↗
38
9020207M0700
Washer, plate (688)
Loading…

↗
39
688441220000
Bushing, shift rod lever
Loading…

↗
40
663483440000
Cable end, remote control
Loading…

↗
41
6H3485380000
Clamp, cable
Loading…

↗
